It seems like every week, a bike brand releases a new gravel-specific bike.

Today, Pivot Cycles released a dramatically updated carbon Vault, but the new bike refuses to be pigeon-holed into being just a gravel bike. The new Vault aims to be your cyclocross bike, road bike and gravel bike, without compromise.

Pivot's all-new versatile Vault cyclocross/gravel bike with a Shimano Pro Ultegra 2x build. © Cyclocross Magazine

Pivot’s all-new versatile Vault cyclocross/gravel bike with a Shimano Pro Ultegra 2x build. © Cyclocross Magazine

We first spied the bike at Sea Otter, then at Dirty Kanza and hours later under Jamey Driscoll as he whizzed by at Lost and Found. Now we have official details of the latest quiver-killer from Pivot.

Longer, Lower, Shorter and a Bump Up in Clearance

Pivot took its popular Vault frameset and stretched out the front-center, shortened the rear and dropped the bottom bracket a bit. Bikes gained a bit in reach, while they sit 5mm lower due to an increased bottom bracket drop.

New Pivot Vault owners likely won’t notice the lower bottom bracket because they’ll offset it by enjoying the frame’s compatibility with bigger, high-volume tires.

Pivot's all-new versatile Vault cyclocross/gravel bike fits up to 700x47mm tires.

Pivot’s all-new versatile Vault cyclocross/gravel bike fits up to 700x47mm tires.

More tire clearance means Pivot lengthened the chainstays, right? Surprisingly, Pivot did the opposite. It dropped both of the Vault’s chainstays and made their effective length 5mm shorter.

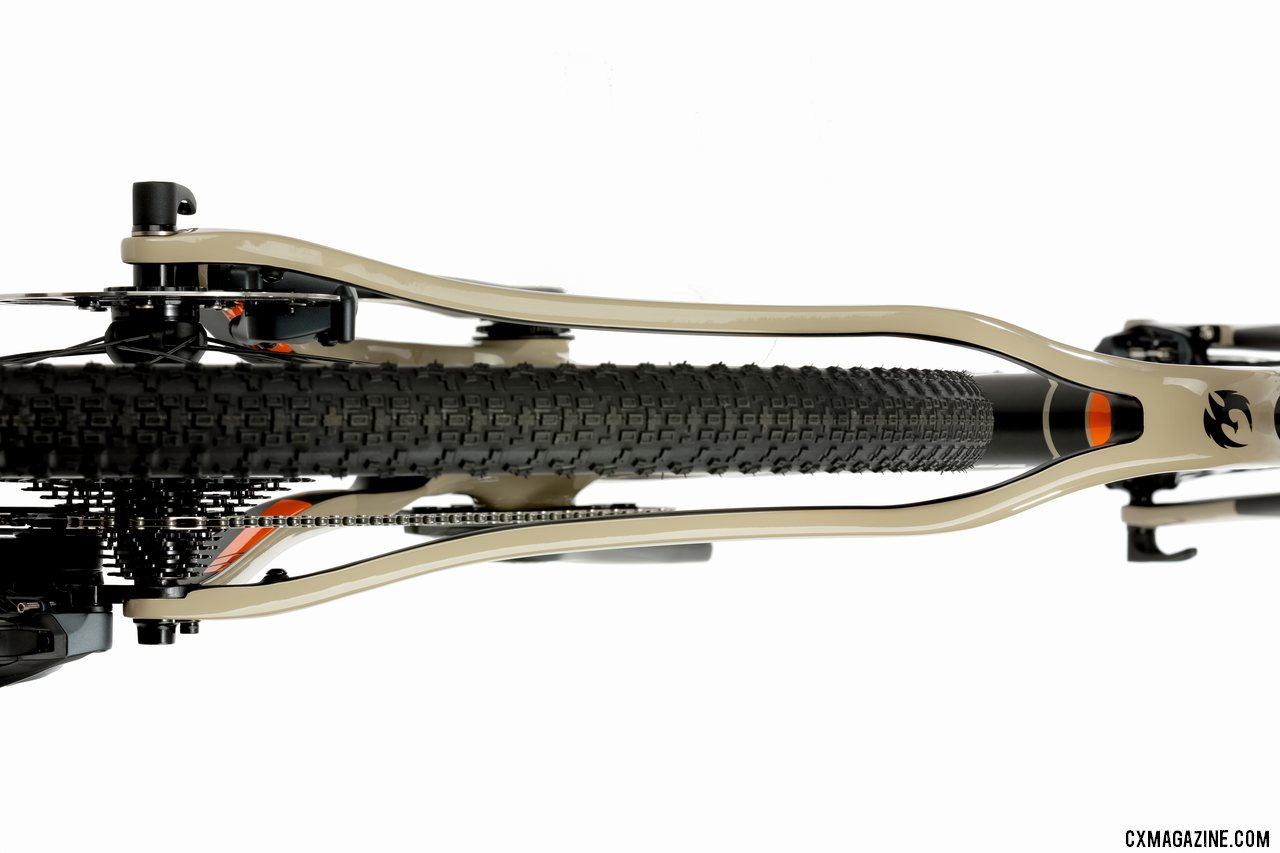

Pivot's all-new versatile Vault cyclocross/gravel bike features dual dropped chainstays.

Pivot’s all-new versatile Vault cyclocross/gravel bike features dual dropped chainstays.

The shaped, dropped chainstays paired with the 86mm-wide 386EVO bottom bracket shell adds up to massive tire clearance. It’s bumped up to 700c x 47mm, or 650b x 2.0″. For mudders like the Pivot-sponsored Courtenay McFadden, Grant Ellwood and Jamey Driscoll, that’s a ton of clearance around 33mm cyclocross tires.

The dropped non-drive-side chainstay also helps with tire clearance and compatibility with non-drive-side power meter crank arms including those from Stages and Shimano.

We first spied Pivot's all-new versatile Vault cyclocross/gravel bike with its dual dropped chainstays at Sea Otter. © Cyclocross Magazine

We first spied Pivot’s all-new versatile Vault cyclocross/gravel bike with its dual dropped chainstays at Sea Otter. © Cyclocross Magazine

Pivot didn’t just add reach and tire clearance. It also added an extra size that looks like it’s aimed at the taller folks. While the old Vault had four frame sizes, the new Vault has five, with a new XL frameset.

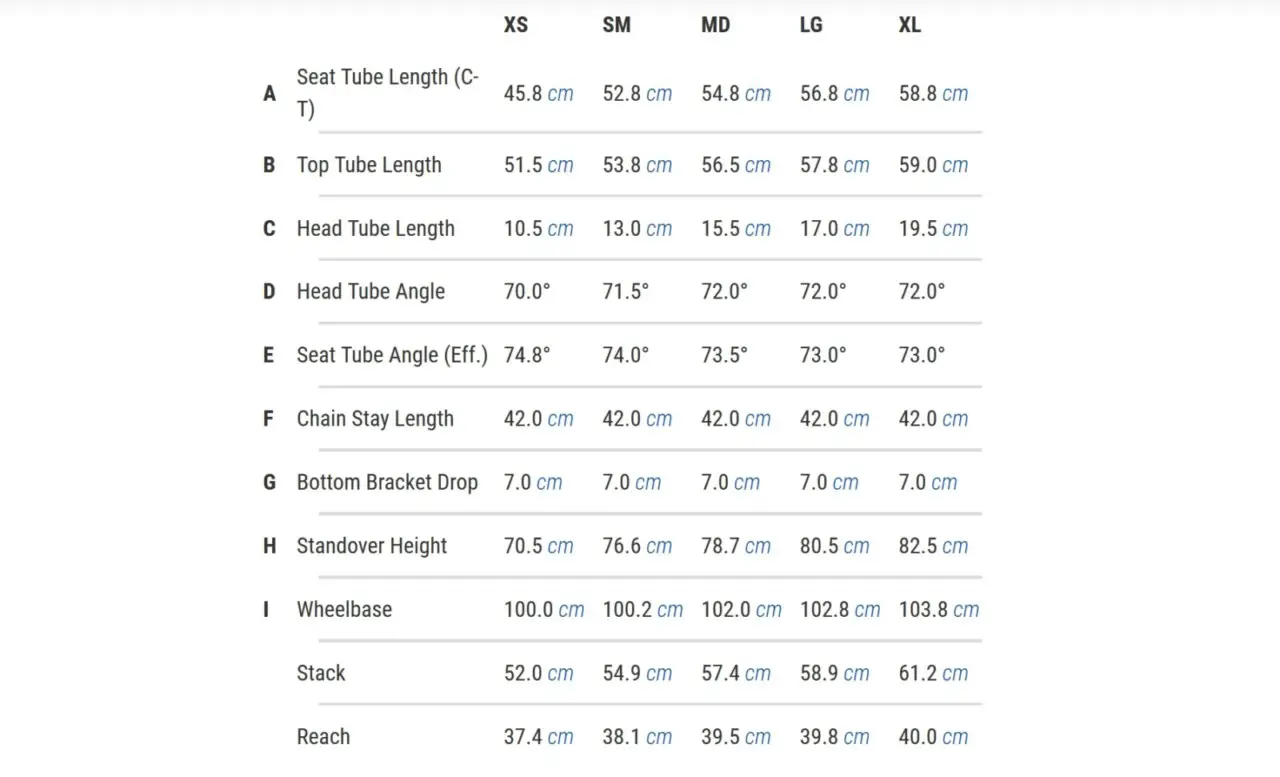

Pivot's new Vault gained a size, and got longer up front, shorter out back, and a bit lower.

Pivot’s new Vault gained a size, and got longer up front, shorter out back, and a bit lower.

Less Bump for Your Rump

The company also added vibration absorption out back, but unlike Cannondale or Trek, it avoided relying on its namesake for compliance—no pivot here. Instead, Pivot added a 56-gram rubber insert to isolate the seat post from the seat tube and surface vibrations.

Pivot's all-new versatile Vault cyclocross/gravel bike boasts Pivot's patent-pending ISO FLEX insert to isolate the seat post from vibration. It relies on a standard splined bottom bracket tool for removal. © Cyclocross Magazine

Pivot’s all-new versatile Vault cyclocross/gravel bike boasts Pivot’s patent-pending ISO FLEX insert to isolate the seat post from vibration. It relies on a standard splined bottom bracket tool for removal. © Cyclocross Magazine

The patent-pending insert, called ISO FLEX, pairs with a compliant Pivot Cycles carbon post to serve up rider comfort, while the rest of the Vault frame aims to deliver stiff, efficient power transfer.

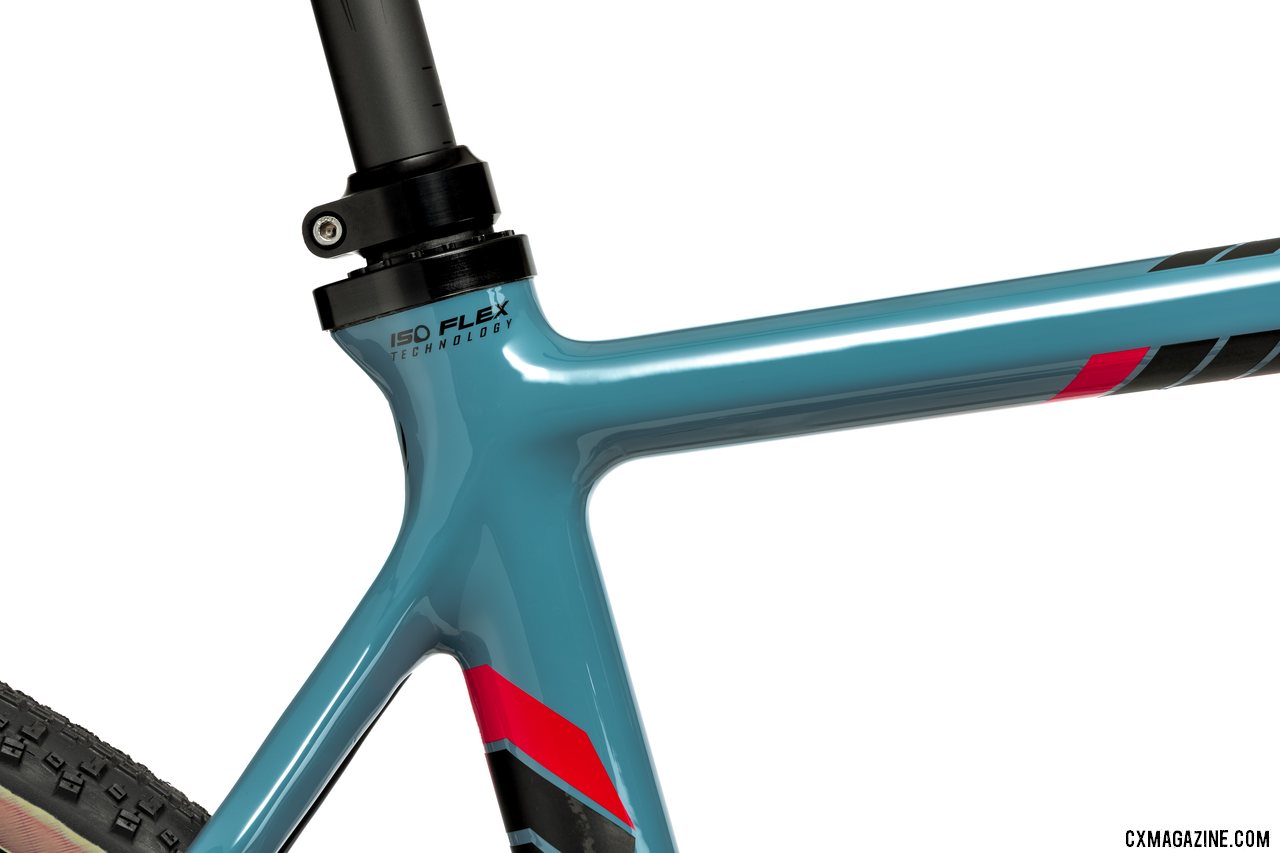

Pivot's all-new versatile Vault cyclocross/gravel bike features the patent-pending ISO FLEX vibration-absorbing insert. © Cyclocross Magazine

Pivot’s all-new versatile Vault cyclocross/gravel bike features the patent-pending ISO FLEX vibration-absorbing insert. We got our first sneak peek at Sea Otter. © Cyclocross Magazine

Think adding the ISO FLEX insert makes for a heavy frame? Pivot says the insert weighs less than 60 grams, and a size medium frame weighs under 1,000 grams. That’s a whopping 300 grams lighter than the previous Vault (or 2/3 of a pound for imperial thinkers).

Worried that the plush rear will make for an out-of-balance ride due to a rigid front end? Pivot aims to please, and has designed its frame to allow for ample clearance for a Fox AX Adventure Cross suspension fork’s crown.

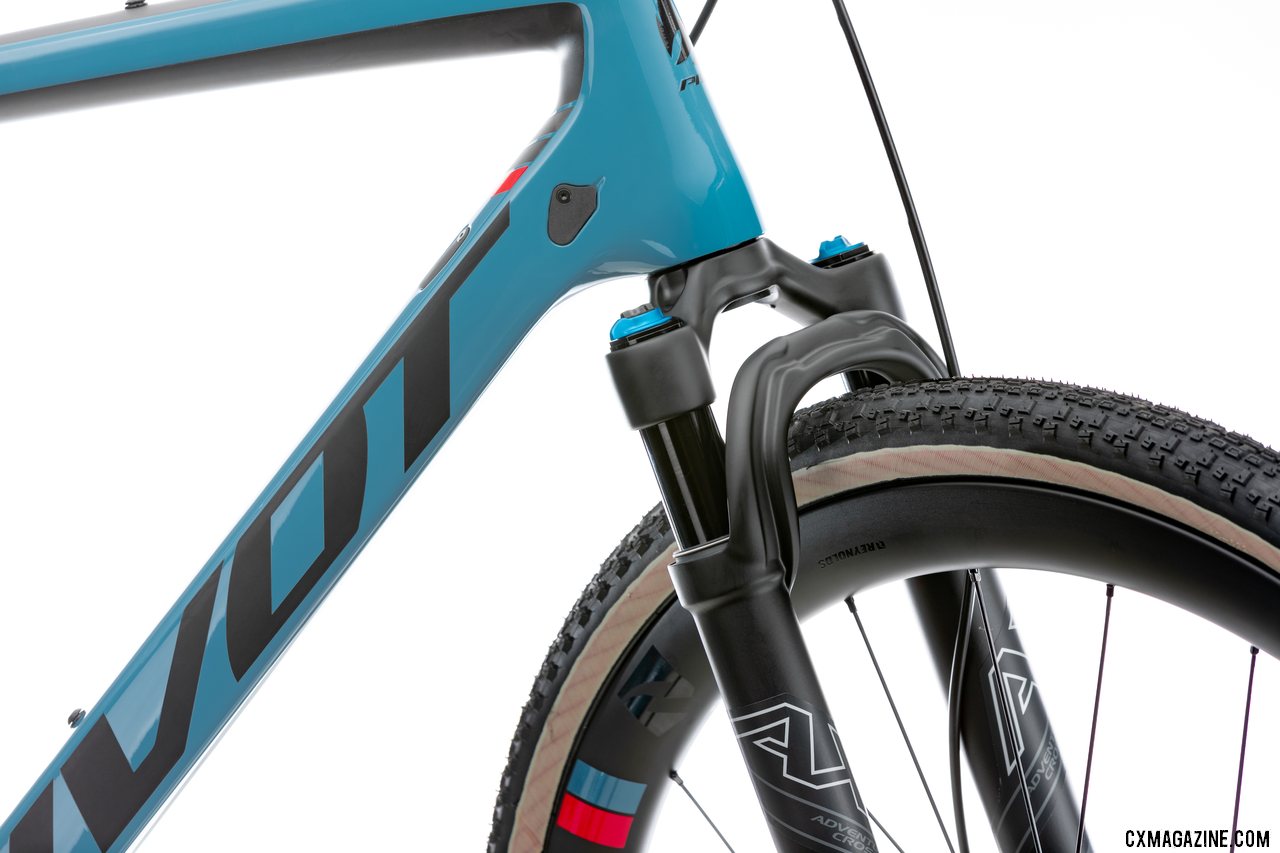

Pivot's all-new versatile Vault cyclocross/gravel bike is compatible with the Fox AX suspension fork.

Pivot’s all-new versatile Vault cyclocross/gravel bike is compatible with the Fox AX suspension fork.

Drop Baby, Drop

Pivot’s ISO FLEX system not only isolates a 27.2mm seat post from road or gravel vibration, it also offers a 30.9mm option that expands dropper post options for those looking to get down for the big descents.

The 30.9mm option has less vibration-absorbing material and a harder durometer than the 27.2mm option, but should please riders who aren’t satisfied with the 27.2mm dropper posts on the market.

That being said, the 27.2mm ISO FLEX insert offers a plusher ride than the 30.9mm option.

Pivot's all-new versatile Vault cyclocross/gravel bike incorporates a new ISO FLEX insert to absorb road vibrations.

Pivot’s all-new versatile Vault cyclocross/gravel bike incorporates a new ISO FLEX insert to absorb road vibrations.

The new Vault comes with the 27.2mm ISO FLEX insert as original equipment, but Pivot offers its 30.9mm ISO FLEX insert is an aftermarket accessory that will soon be available from Pivot’s web store.

Pivot thankfully designed the ISO FLEX insert to rely on common tools. A splined bottom bracket tool like the Park BBT-9 is all you need to swap out the insert.

Accessories and Options

A do-it-all bike wouldn’t live up to its billing if it couldn’t accept modern accessories.

Pivot's all-new versatile Vault cyclocross/gravel bike features top tube bag mounts. © Cyclocross Magazine

Pivot’s all-new versatile Vault cyclocross/gravel bike features top tube bag mounts. © Cyclocross Magazine

The new Vault is ready to haul year ’round with a top tube bag mount, three-bolt adventure mount on the down tube and hidden fender mounts, yet remains true to its racing heritage in that it’s not fully covered in frame barnacles for every possible contraption.

Pivot's all-new versatile Vault cyclocross/gravel bike features adventure mounts on the down tube. © Cyclocross Magazine

Pivot’s all-new versatile Vault cyclocross/gravel bike features adventure mounts on the down tube. © Cyclocross Magazine

Pivot's all-new versatile Vault cyclocross/gravel bike features hidden fender mounts.

Pivot’s all-new versatile Vault cyclocross/gravel bike features hidden fender mounts.

Want to run two chainrings? Pivot offers an Ultegra 2x build, and claims its ultra-stiff front derailleur mount delivers great shifting. Prefer the single ring life? The mount disappears with an integrated cover.

Pivot's all-new versatile Vault cyclocross/gravel bike features a removable front derailleur mount.

Pivot’s all-new versatile Vault cyclocross/gravel bike features a removable front derailleur mount.

Aspire to run Shimano Di2? The port under the down tube offers space for a battery and allows for easy internal wiring.

Pivot's all-new versatile Vault cyclocross/gravel bike has a port by the bottom bracket to assist with the all-internal routing, and store a Di2 battery. © Cyclocross Magazine

Pivot’s all-new versatile Vault cyclocross/gravel bike has a port by the bottom bracket to assist with the all-internal routing, and store a Di2 battery. © Cyclocross Magazine

Shimano Ultegra Gravel, or SRAM AXS eTap ’Cross?

Pivot offers the new Vault as a $2699 frameset, as a Shimano “Pro Ultegra” mechanical 2x build for $5199, or with a SRAM “Team Force” AXS eTap 1x build for $6699.

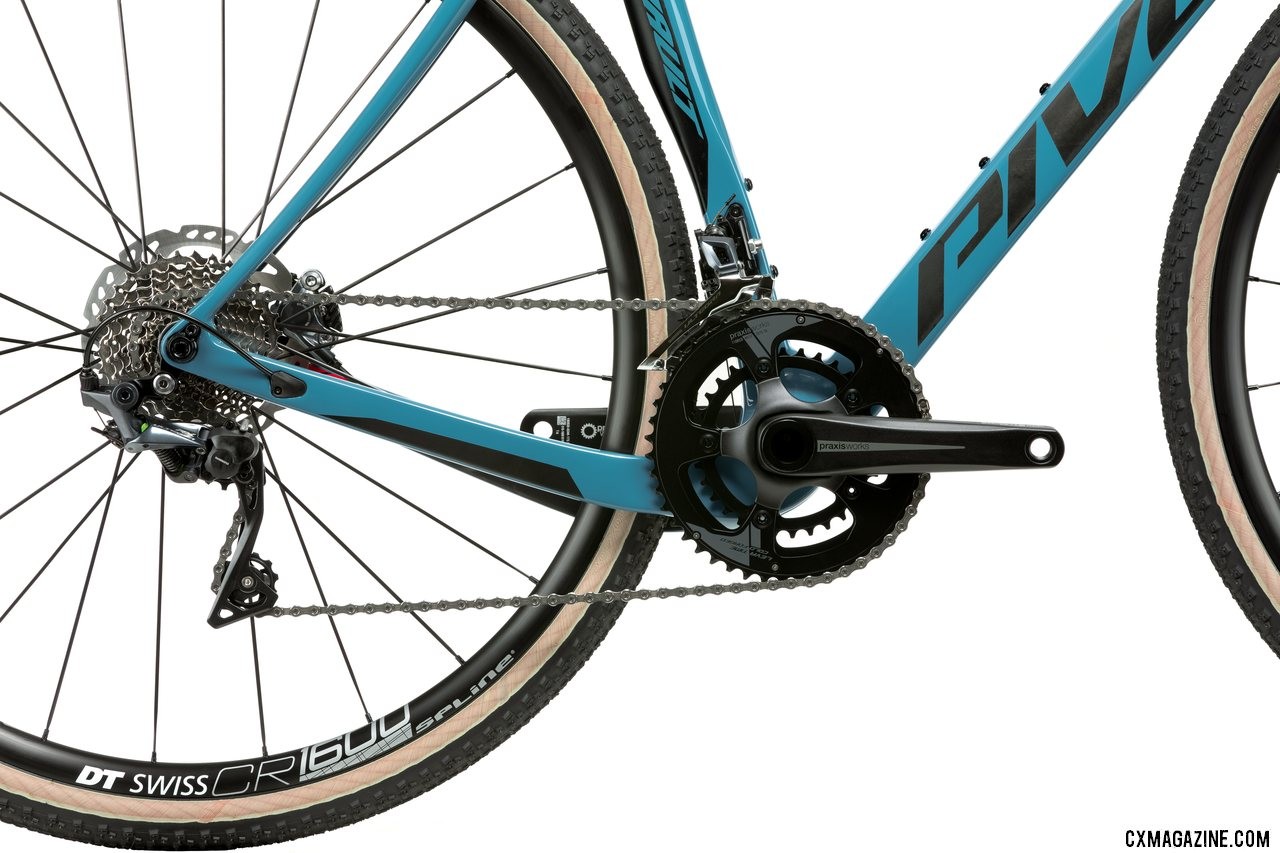

Pivot's all-new versatile Vault cyclocross/gravel bike with a Shimano Pro Ultegra 2x build.

Pivot’s all-new versatile Vault cyclocross/gravel bike with a Shimano Pro Ultegra 2x build.

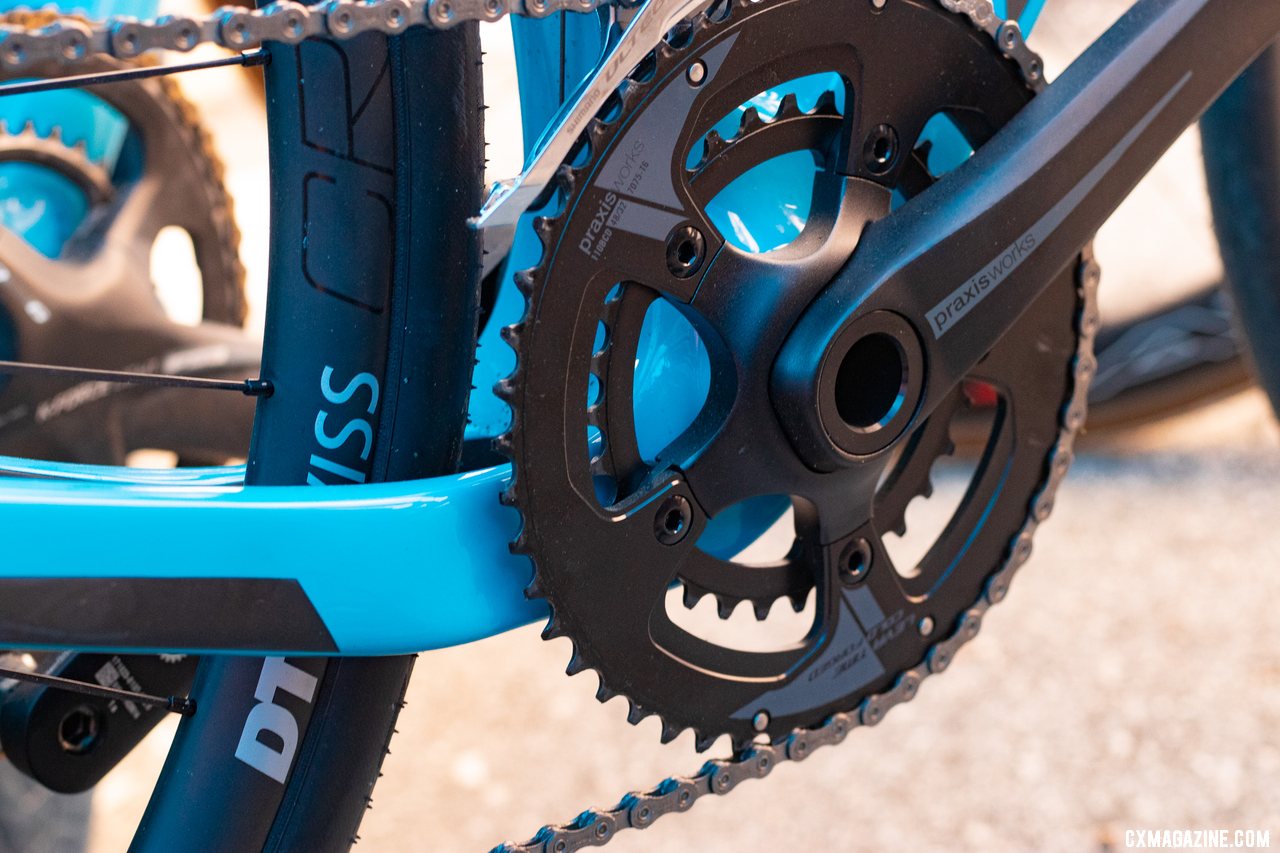

The Ultegra build looks gravel ready, with a Praxis Zayante crankset with 49/32 rings and an 11-34 cassette. The DT Swiss CR 1600 Spline wheels roll on Maxxis Rambler 40mm gravel tires.

Pivot Vault Pro Ultegra Build

BuildPro Ultegra
Price$5,199.00
FrameVault
MaterialCarbon
Wheel Size700C
ForkPivot Vault Carbon Disc
HeadsetPivot Precision Sealed Integrated Cartridge
Rear DerShimano Ultegra RX
ShifterShimano Ultegra R8020 11-Speed
BrakesShimano Ultegra R8020 Disc
CranksetPraxis Zayante M30 48/32t - 165 (XS), 170 (SM), 172.5 (MD), 175 (LG, XL)
HandlebarEaston EA70 AX - 40 (XS), 42 (SM), 44 (MD), 46 (LG, XL)
StemPhoenix Team 31.8mm
SeatpostPhoenix Pro Carbon 27.2mm
SaddlePhoenix WTB Race Volt
CassetteShimano Ultegra HG-800 11-34t
WheelsDT Swiss CR 1600 SPLINE 22mm
TiresMaxxis Rambler 700c x 40mm TR Skinwall w/Stan's Sealant
RotorShimano XT RT81 CenterLock - 160mm
ChainShimano CN-HG600 11-Speed

The SRAM Force AXS eTap build also rolls on Rambler gravel tires, but appears more cyclocross-oriented to our eyes. It matches a SRAM Force 1 DUB crankset with a 36t X-Sync II ring with a 10-33 SRAM Force 12-speed cassette.

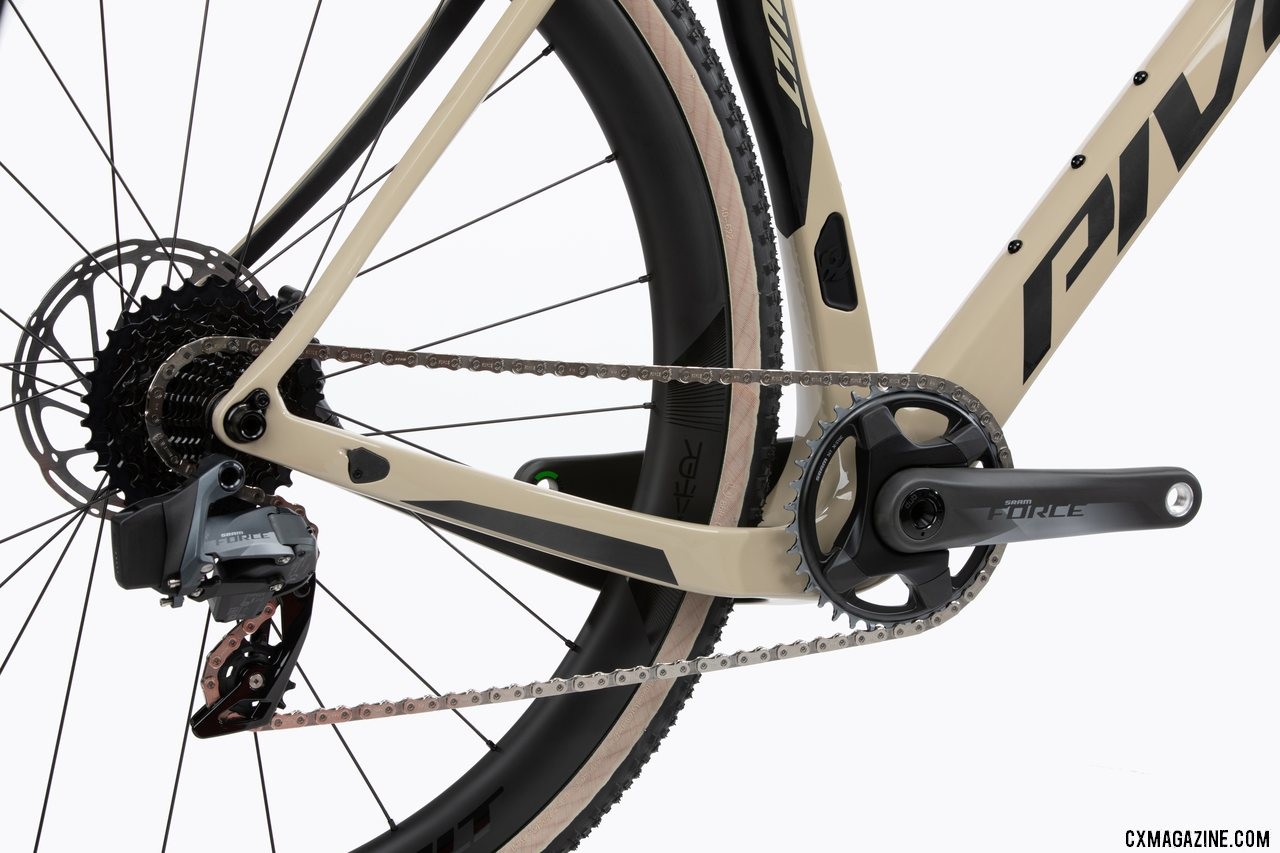

Pivot's all-new versatile Vault cyclocross/gravel bike with a SRAM Team Force 1 AXS eTap build.

Pivot’s all-new versatile Vault cyclocross/gravel bike with a SRAM Team Force 1 AXS eTap build.

The 36/33 low gear may not be low enough for weekend gravel adventurers, but should be plenty low enough for most cyclocross racers. If not, owners could always convert their steed to “a mullet bike” with an Eagle rear derailleur and 10-50 cassette, but that would be a pricey upgrade.

Pivot Vault Team Force Build

BuildTeam Force
Price$6,699.00
FrameVault
MaterialCarbon
Wheel Size700C
ForkPivot Vault Carbon Disc
HeadsetPivot Precision Sealed Integrated Cartridge
Rear DerailleurSram Force AXS e-Tap 12-Speed
ShifterSram Force AXS eTap
BrakesSram Force
CranksetSram Force 1 DUB 36t - 165 (XS), 170 (SM), 172.5 (MD), 175 (LG, XL)
HandlebarEaston EC70 AX - 40 (XS), 42 (SM), 44 (MD), 46 (LG, XL)
StemPhoenix Team 31.8mm
SeatpostPhoenix Pro Carbon 27.2mm
SaddlePhoenix WTB Pro Volt
CassetteSram Force XG-1270 10-33t

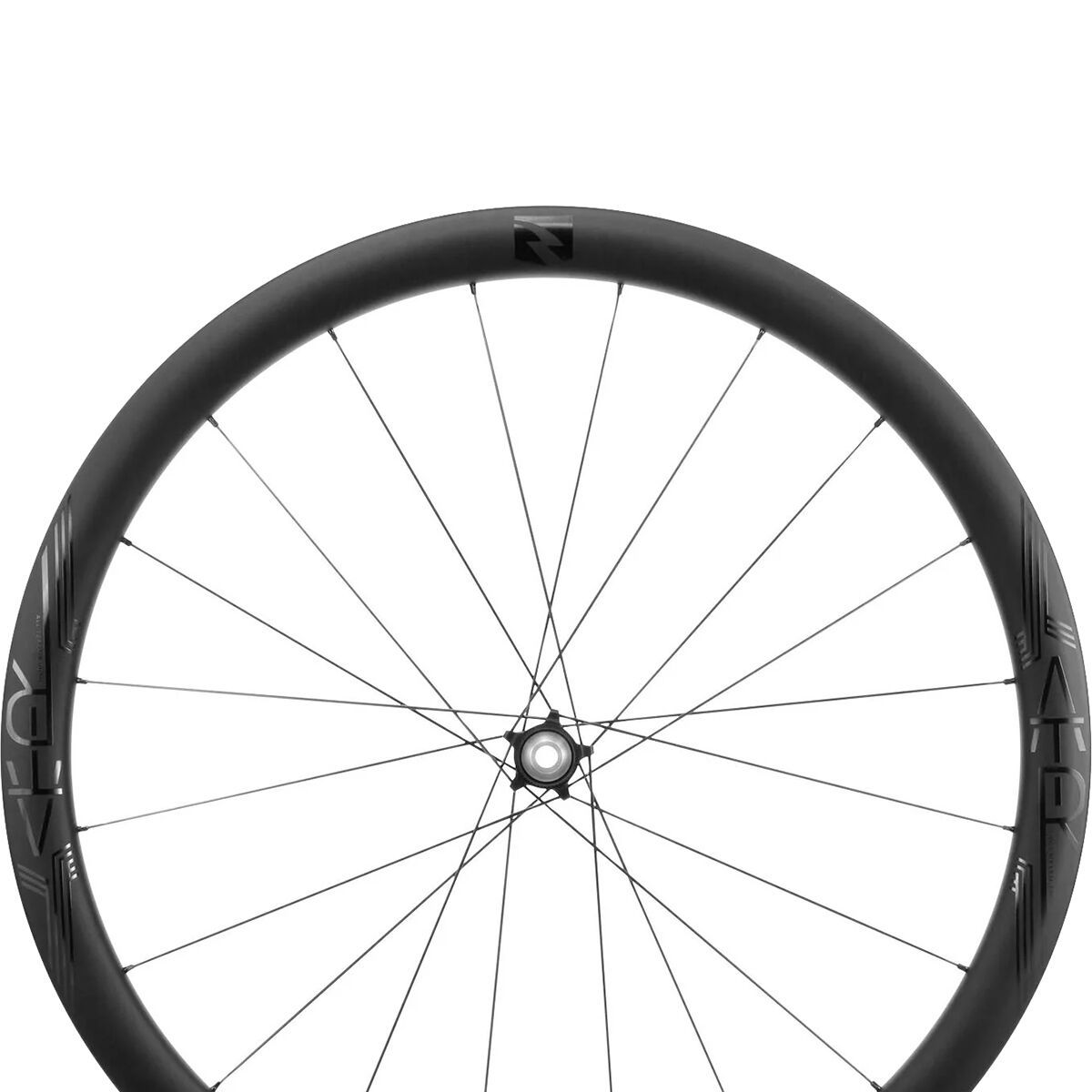

WheelsReynolds ATRx 23mm
TiresMaxxis Rambler 700c x 40mm TR Skinwall w/Stan's Sealant
RotorSram Centerline CenterLock - 160mm
ChainSram Force 12-Speed

First Impressions

We’ve said it many times before, but it’s worth saying again. While we understand why big bike companies chase the latest trends and market bikes specific to niches, most of our readers don’t buy bikes looking to constrain themselves to riding only one season of the year, in just one discipline or on just one surface.

Pivot's all-new versatile Vault cyclocross / gravel bike with a SRAM Team Force 1 AXS eTap build.

Pivot’s all-new versatile Vault cyclocross / gravel bike with a SRAM Team Force 1 AXS eTap build.

Pivot’s goal of “uncompromising versatility” with its new Vault looks like it should please cyclists who like to race or go fast, whether that’s on gravel, pavement or between the tape on a cyclocross course.

We anxiously await our test bike to see if such versatility brings compromises, or if Pivot Cycles found the magic formula.

Thankfully readers don’t have to wait, as select dealers already have the bikes available.
