T-Lab is a new company formed in 2016 by the team behind Guru, the defunct producer of high-end custom bikes. Unlike its predecessor, T-Labs concentrates on one material, titanium.

At NAHBS 2019 the All-Terrain X3 gravel / adventure bike caught our eye.

T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

The X3 has some unique features to set it apart from the multitude of other titanium bikes we saw at NAHBS.

T-Labs cold-forms Grade 9 titanium (3Al/2.5V) titanium alloy in a mold to yield the final tube shape. Those shapes include radically flattened tubes at certain weld junctions and in certain locations along the tubes.

T-Lab cold-forms its titanium tubing. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

T-Lab cold-forms its titanium tubing. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

Co-Owner John Anagostopolous told us that T-Lab's analysis showed that the shapes chosen in the locations chosen will offer stiffer tubes for more efficient rider energy transfer without a weight penalty. Ride quality will actually be enhanced is the claim.

T-Lab flattens some of the tubes for a claimed better ride. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

T-Lab flattens some of the tubes for a claimed better ride. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

The three-piece welded head tube saves the need to machine a billet of titanium, the typical method. Machining a head tube is time-consuming and has a lot of material waste. The three-piece design enhances flexibility in frame fabrication.

T-Lab Bikes is based in Montreal, where it builds its titanium bikes. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

T-Lab Bikes is based in Montreal, where it builds its titanium bikes. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

T-Lab also has a unique rear wheel attachment. These used to be called dropouts, as the wheel would drop out when the quick release was opened. The new standard for drop bar bikes is 12x142mm thru-axle.

T-Labs developed a system where the machined axle mounts include the derailleur mount on the drive side and the disc caliper mount on the non-drive side. Those pieces are bolted to the rear triangle. This allows interchangeability and more flexibility in frame production.

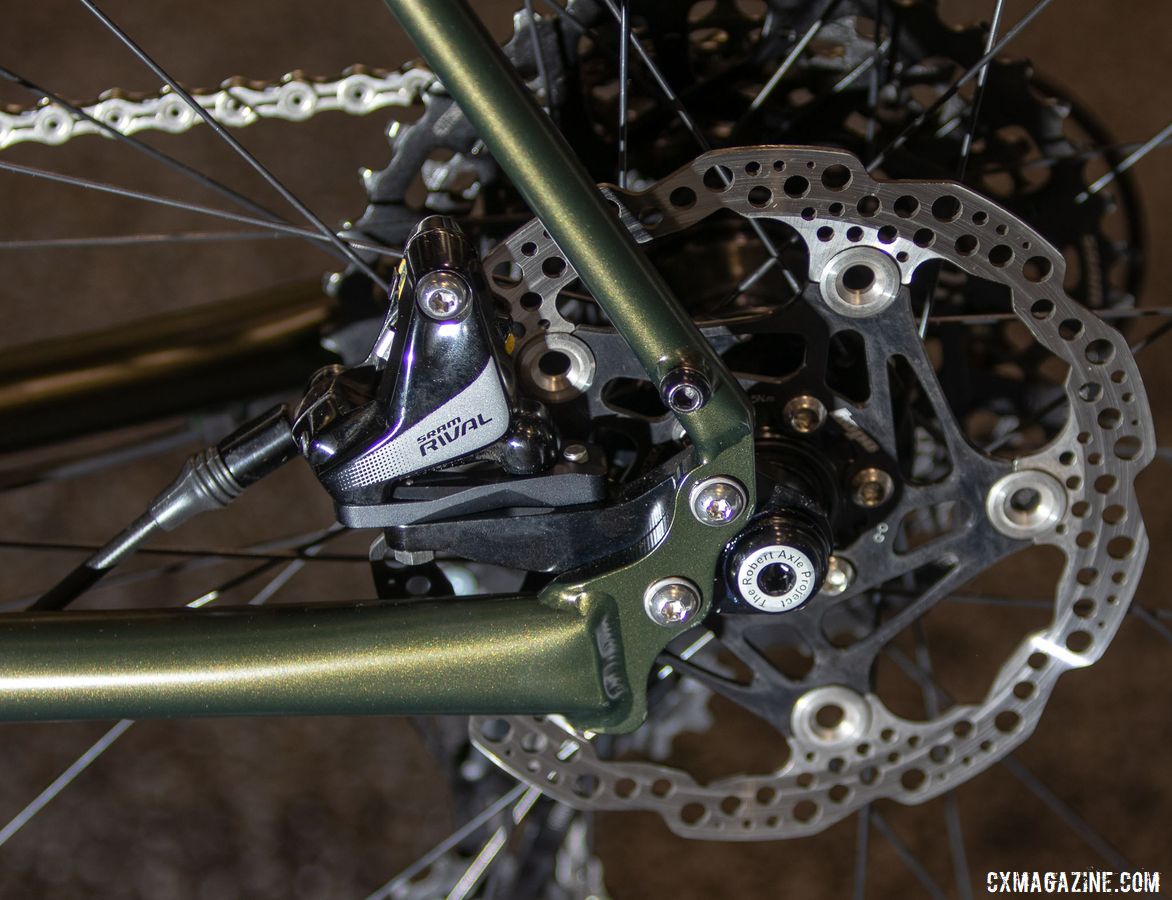

The X3 has unique machined axle mounts. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

The X3 has unique machined axle mounts. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

T-Lab picked a BB386 bottom bracket shell to allow a wider chainstay stance for better tire and crank arm clearance. The X3 can fit 700c x 44mm tires or 650b x 51mm.

The X3 has lots of clearance to aid in adventure. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

The X3 has lots of clearance to aid in adventure. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

The X3 frameset with a T-Lab carbon fork starts as $4,200 USD. The claimed frame weight is 1,200 grams.

The X3 build on display with the single ring Rotor 3D crankset weighed a claimed 17 pounds.

For a closer look at the T-Lab All-Terrain X3, see the photo gallery below.

More info: t-lab-bikes.com

Stay tuned for more handbuilt bikes from 2019 NAHBS show in Sacramento.

Photo Gallery: T-Lab All-Terrain X3 Titanium Bike

Use your ← → (arrow) keys to browse
The display bike had a SRAM Force 1 build, including hydro disc brakes. T-Lab Bikes' X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine

The display bike had a SRAM Force 1 build, including hydro disc brakes. T-Lab Bikes’ X3 titanium gravel / adventure bike. 2019 NAHBS Sacramento. © A. Yee / Cyclocross Magazine
