One of the appeals of carbon wheels is they can provide a lightweight, aerodynamic deep-section wheel. Carbon wheelsets, especially tubular wheelsets, are generally lighter than their aluminum cousins. Carbon rims can also be engineered with more rigidity than aluminum for the same weight, yielding a wheel with fewer spokes in a tensioned wheel design and better reliability in trueness and roundness. The major disadvantages are cost and the damage that can result from just one strike to the rim.

That said, carbon wheel performance can be obtained with a well-built aluminum wheelset for nearly half the price of carbon. If aerodynamics are not a primary factor in choosing race wheels, a shallow alloy rim can also tip the scales at weights similar to a deeper carbon rim.

HED Cycling Ardennes SL disc tubular wheelset weighs 1,435 grams for the quick release version and has an MSRP of $1200.© Clifford Lee / Cyclocross Magazine

HED Cycling Ardennes SL disc tubular wheelset weighs 1,435 grams for the quick release version and has an MSRP of $1200. © Clifford Lee / Cyclocross Magazine

The HED Ardennes SL disc brake tubular wheelset is an example of an aluminum wheelset that achieves weight performance similar to a carbon option. The Ardennes SL is handbuilt in Minnesota around a 24mm wide, 24mm deep aluminum rim with a 19mm bed width that drops 4mm deep. Widths and depths were measured on our test wheelset; the list width is 23mm and depth is 24.5mm.

The Ardennes SL rim weighs under 400g, is 19mm wide and dips 4mm in the center. © Clifford Lee / Cyclocross Magazine

The Ardennes SL rim weighs under 400 grams. The bed of the rim is 19mm wide and dips 4mm in the center. © Clifford Lee / Cyclocross Magazine

Although the weights of the rims themselves are not published, Cyclocross Magazine spoke with Paul Ellis of HED and he told us the rim weighs less than 400 grams. The rims are laced to HED's new 545 Center Lock hub with Sapim CX-Ray steel spokes in a 2x pattern. The new hubs have 5 pawls and 45 teeth (hence the name) to assist with engagement and angled flanges with chamfered edges, but not as rounded as we see with other makes. HED says there are no reliability issues with the flange design, but of course, time in the field will tell and we will report back with our long-term review.

HED's new 545 center lock disc hubs have angled and chamfered flanges.© Clifford Lee / Cyclocross Magazine

HED's new 545 Center Lock disc hubs have angled and chamfered flanges.© Clifford Lee / Cyclocross Magazine

At a list price of $1,200, the Ardennes SL disc wheelset costs 40% less than HED’s older Stinger 3, a previous Editors’ Choice award-winning wheelset. With a total weight of 1,435 grams, the Ardennes SL is just 65 grams heavier than the carbon HED Stinger 3 CX tubular wheelset, which is an older set similarly configured with QR Center Lock disc hubs. The Stinger 3 CX costs $800 more for the 2.5 ounces of weight saving—that is a lot of post-race burritos or race entry fees.

While the Ardennes SL is cheaper than the carbon Stinger, it's also worth noting that it has the same price as some heavier carbon wheels such as Bontrager Kovee 29 TLR wheels, while the similar weight alloy American Classic MTB Race retails for $300 less.

The HED Ardennes SL wheelset comes in both quick release—which we requested for our test set—and 12mm and 15mm front and 142mm x 12mm rear thru-axle options. Swapping from one configuration to another requires an axle swap with parts available directly from HED or ordered through your local bike shop. The actual swap requires tapping the bearings out with the axle, so we do not consider it a field procedure if you are moving wheels between bikes, but this offers more security than pressed-in axle end caps.

A Shimano-compatible freehub comes standard on the Ardennes SL. A SRAM XD driver or a Campagnolo-compatible body is available seperately.© Clifford Lee / Cyclocross Magazine

A Shimano-compatible freehub comes standard on the Ardennes SL. A SRAM XD driver or a Campagnolo-compatible body is available separately. © Clifford Lee / Cyclocross Magazine

The wheelset is made to order with the chosen axle specification and a Shimano-compatible freehub. An XD driver or a Campagnolo-compatible freehub can be ordered separately from HED.

HED Ardennes SL First Glue, First Ride Impressions

We glued on a set of tubulars without incident and took them to the off-road trails. The HED Ardennes SL wheels have held their roundness and trueness while we have ridden them at tire pressures low enough to bottom out on occasion. Even at these low pressures, the rims did not cause pinch flats of our tubular tires. Admittedly, we held back a bit during our initial test rides to avoid having to change a tubular, but we will have to wait until next month for the Ardennes SL tubular wheels to get put through some real training and racing action.

The HED Ardennes SL tubular with a Clement PDX tubeless tubular mounted. © Clifford Lee / Cyclocross Magazine

The HED Ardennes SL tubular with a Clement PDX tubeless tubular mounted. © Clifford Lee / Cyclocross Magazine

HED Ardennes SL Disc Tubular Specifications

Price: $1,200
Rim: aluminum alloy, 24mm external width (actual), 19mm bed width (actual), 24mm depth (actual), tubular, disc only
Hub: HED 545 Center Lock 5-pawl, 45T hub, Shimano-compatible freehub, XD driver and Campagnolo-compatible freehub available
Axles: front/rear quick release, 12mm or 15mm front thru-axle, 142mm x 12mm rear thru-axle
Spokes: Sapim CX-Ray steel spokes,  black, 2x, 24 front, 24 rear
Weight: 1,435 grams (quick release actual), front 666 grams (actual), rear 769 grams (actual), 1,465 grams (thru-axle claimed weight)
More Info: hedcycling.com

Photo Gallery: HED Ardennes SL Disc Tubular Wheelset

3 of 10
Use your ← → (arrow) keys to browse

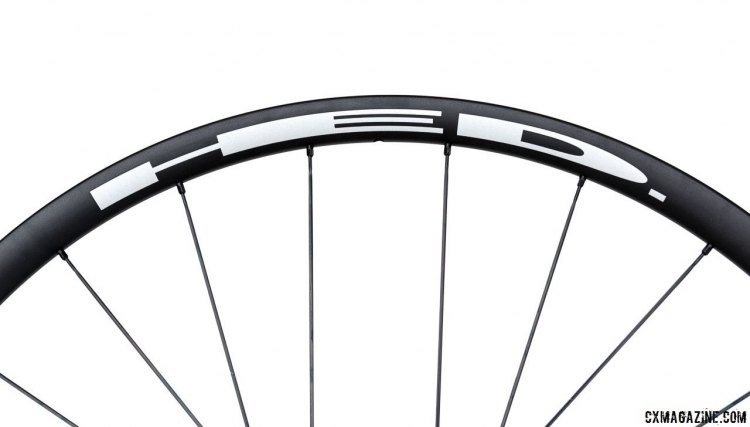

The Ardenne SL is laced with 24 Sapim CX-Ray steel spokes in a 2x pattern. © Clifford Lee / Cyclocross Magazine

The Ardennes SL is laced with 24 Sapim CX-Ray steel spokes in a 2x pattern. © Clifford Lee / Cyclocross Magazine
