Last year, Lance Haidet and his Donnelly Cycling teammates rode the Pivot Vault frame for both cyclocross and some gravel racing. Earlier this year, we took what would be a last look at Haidet’s Pivot Vault with FSA K-Force WE electronic shifting.

This year at the Dirty Kanza All Things Gravel Expo, Donnelly, best known for its line of cyclocross and gravel tires, announced it is going to start making its own bikes. The G//C gravel and C//C cyclocross carbon framesets were on display in Kansas, and while there we took a closer look at the G//C model Jamey Driscoll rode for the 206-mile grind.

Donnelly’s new cyclocross frame is now out on the cyclocross course under Haidet, his teammate Laurel Rathbun and the Amy D. Foundation Elite riders Emily Werner and KK Santos.

At the inaugural RenoCross, Haidet rode the new C//C to a win following a late attack initiated by his former teammate Driscoll.

Lance Haidet's Donnelly C//C carbon fiber cyclocross bike, RenoCross 2018.

Lance Haidet’s Donnelly C//C carbon fiber cyclocross bike, RenoCross 2018.

After Haidet’s impressive win, we took a closer look at the new Donnelly Cycling C//C that Haidet rode under the desert lights.

Lance Haidet’s RenoCross Donnelly C//C Cyclocross Bike

A lot has changed since we last checked in with Haidet at Sea Otter. Title sponsor Donnelly launched its first cyclocross frame, and it is no surprise to see the team astride the new bikes. Additionally, while sponsor FSA seems to finally be ready to launch its long-awaited K-Force WE groupset, at RenoCross Haidet’s bike was equipped with a Shimano Di2 groupset. By Jingle Cross, he had switched the sponsor-correct K-Force WE groupset.

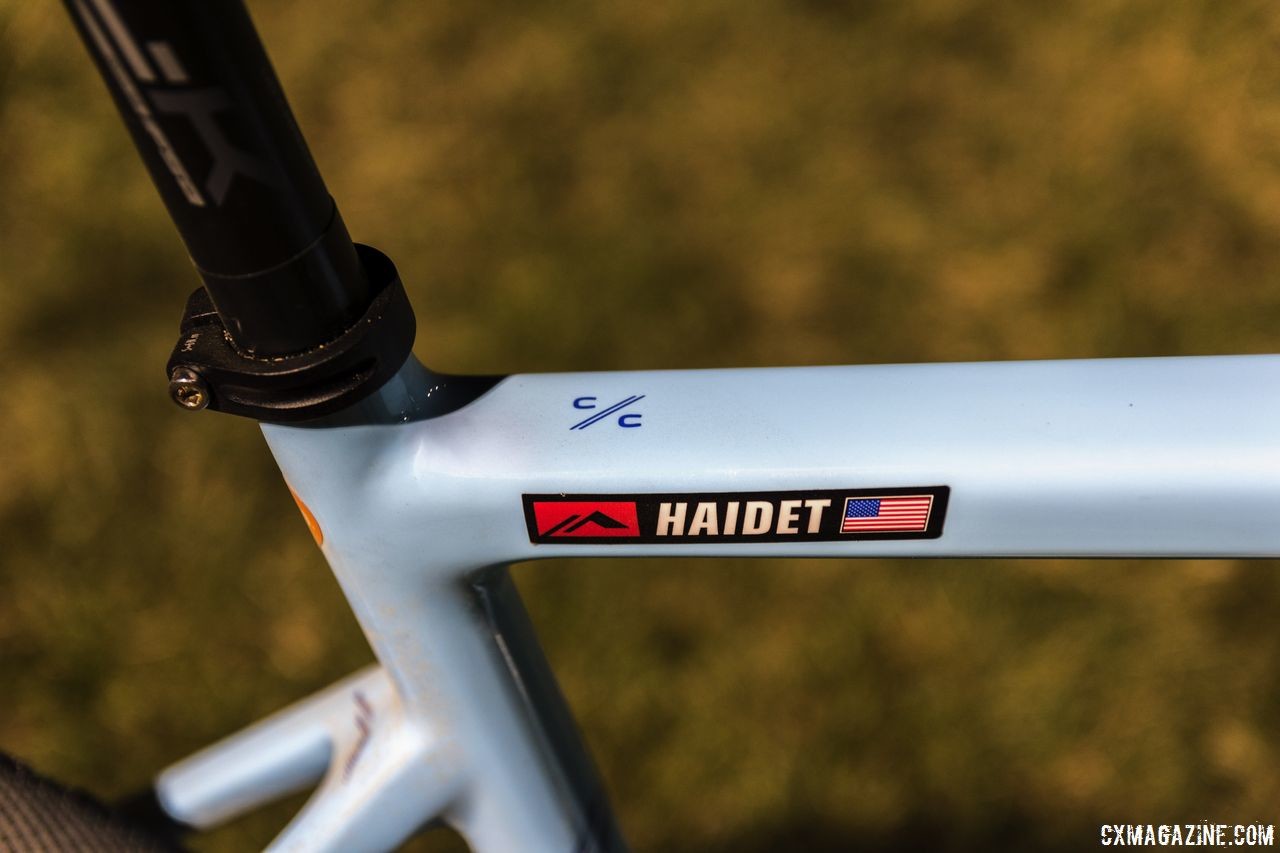

Haidet’s frame is Donnelly Cycling’s carbon cyclocross-specific C//C. Launched for the 2018 season, the frame is the first to bear the Donnelly name and sells for $1,999 as a frameset in the same Amy D. blue as Haidet’s bike. With clearance for up to 40mm tires, 12mm thru-axles, a BB386 bottom bracket shell, internal cable routing and flat mount brakes, the bike checks all the boxes for a modern cyclocross frame.

The C/C is Donnelly Cycling's cyclocross specific frame released earlier this year. Lance Haidet's 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

The C/C is Donnelly Cycling’s cyclocross specific frame released earlier this year. Lance Haidet’s 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

FSA, a team sponsor, provides the majority of the bike’s components. The seatpost, stem and handlebar come from the brand’s SL-K line as does the BB386 compatible crank with 46/36t chain rings. Bar tape is also sponsor-correct in the form of FSA Powertouch in a bright safety yellow. FSA does not (yet) produce saddles, and so Haidet rode a Specialized Power saddle. His pedals were the Shimano XTR M9000 SPD model.

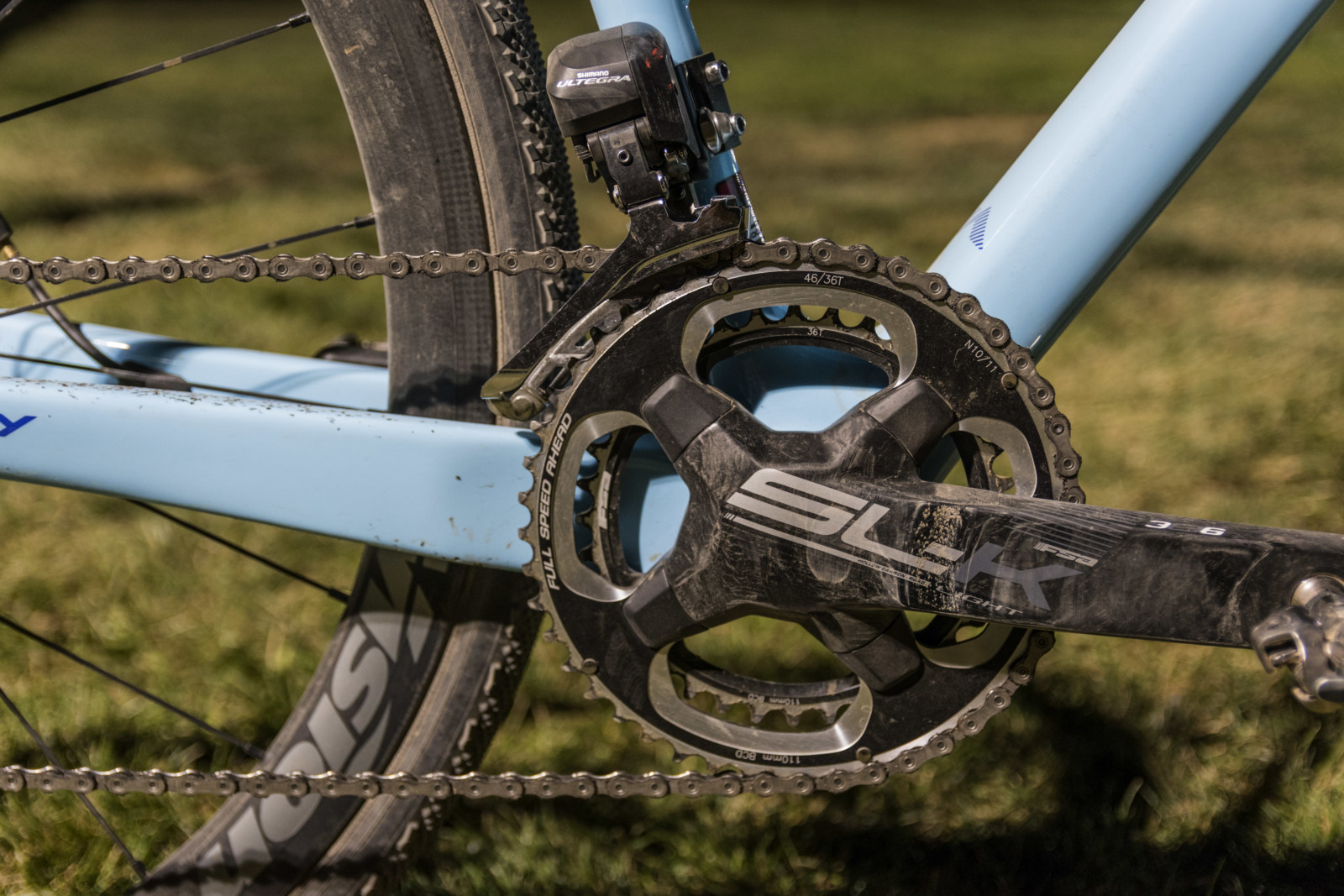

While the SL-K crank is likely to stay through the season, Haidet's Shimano 6800 front derailleur will soon be replaced. Lance Haidet's 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

While the SL-K crank is likely to stay through the season, Haidet’s Shimano 6800 front derailleur will soon be replaced. Lance Haidet’s 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

Wheels came from FSA subsidiary Vision, who provided Metron 40 carbon tubular wheels. Unsurprisingly, Haidet’s tires were Donnelly branded. In Reno, he chose the LAS file tread for the Rancho San Rafael grass and inflated them to 24.5 psi front and 25.5 psi rear.

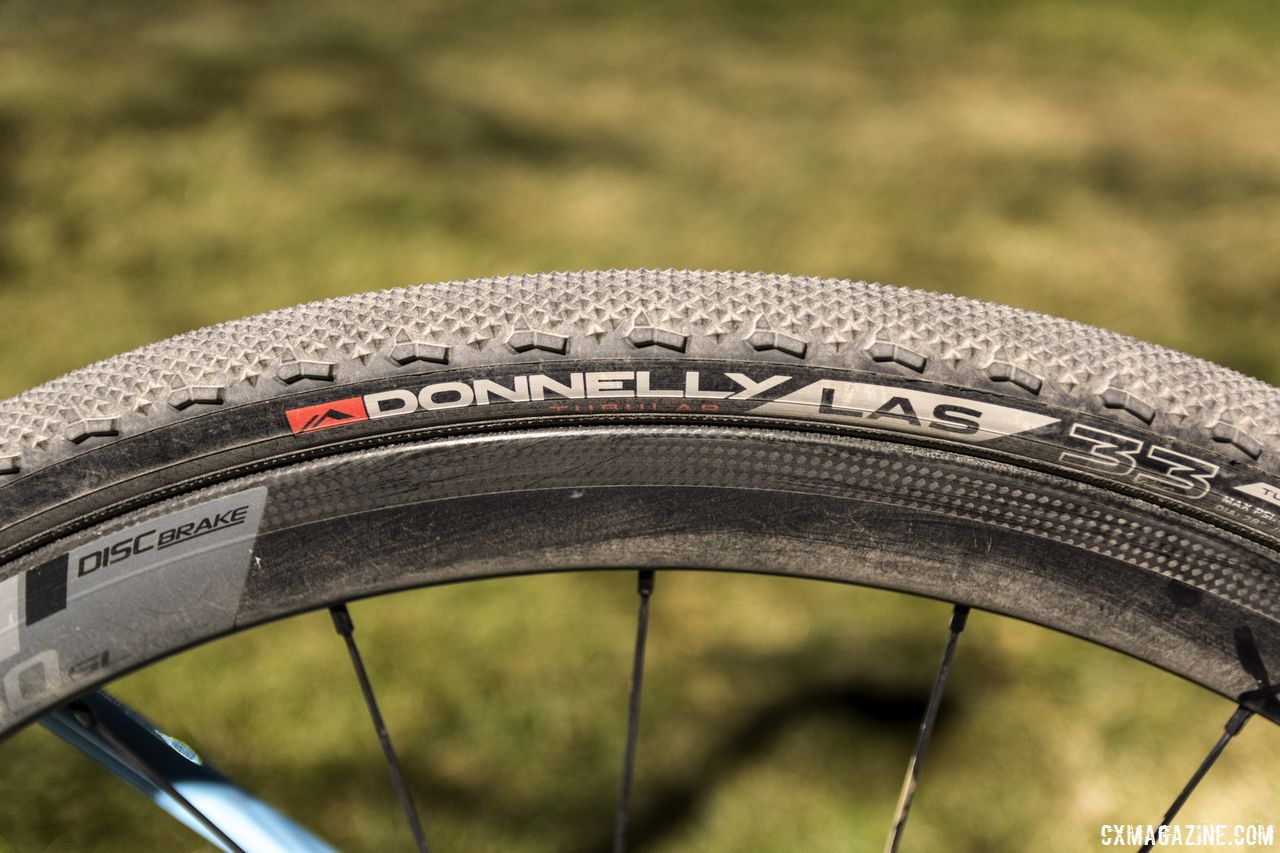

The LAS was named for Las Vegas, the former host of the race which has become RenoCross. Perhaps a name change is in order? Lance Haidet's 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

The LAS was named for Las Vegas, the former host of the race which has become RenoCross. Perhaps a name change is in order? Lance Haidet’s 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

Haidet’s groupset is the most interesting part of his RenoCross build. While Donnelly will be using FSA’s WE electronic group for the majority of the season and Haidet had access to what appeared to be a production-ready group at Sea Otter, his bike was equipped with Shimano Di2 in Reno. The temporary transmission used the older-model Ultegra 6870 shifters and derailleurs.

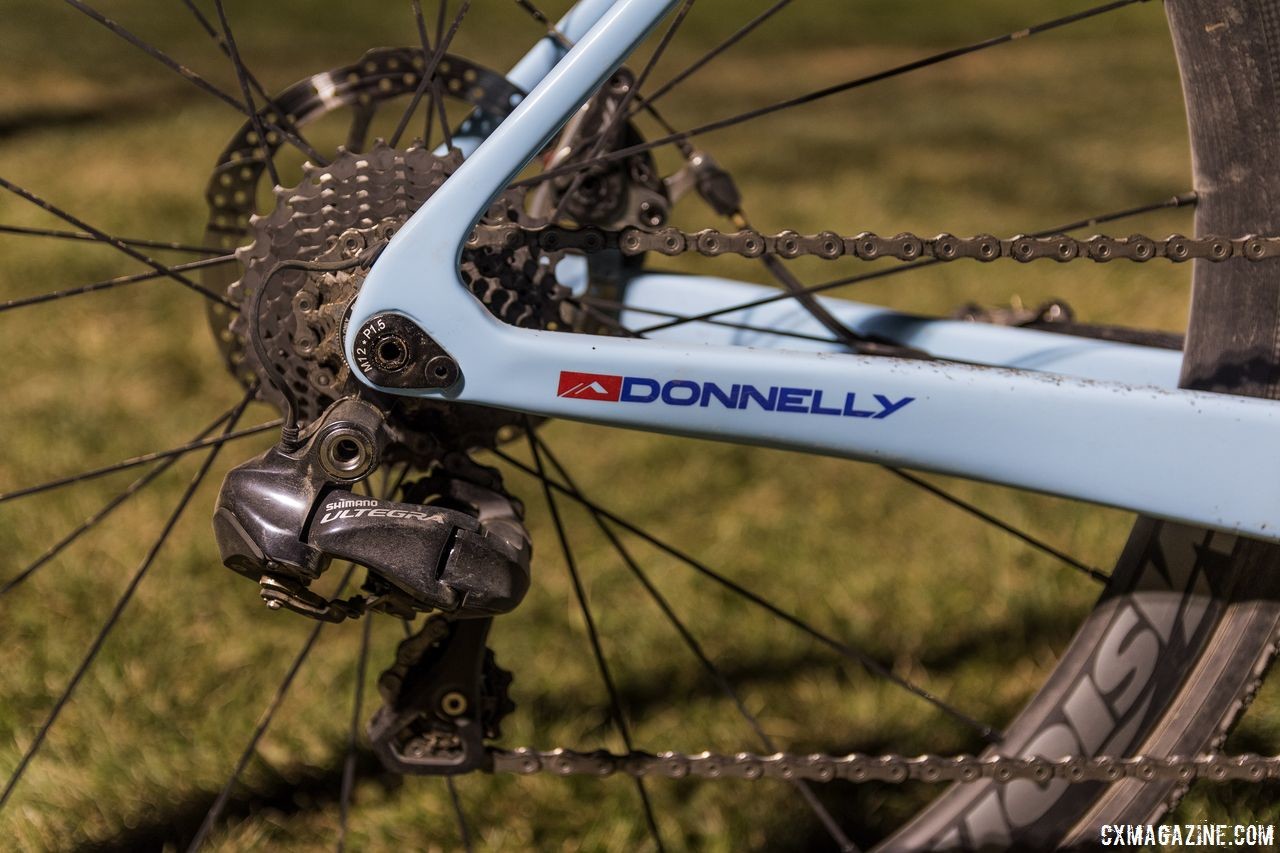

Haidet ran older Ultegra 6870 derailleurs instead of the FSA K-Force WE we saw him use at Sea Otter. Lance Haidet's 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

Haidet ran older Ultegra 6870 derailleurs instead of the FSA K-Force WE we saw him use at Sea Otter. Lance Haidet’s 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

Haidet’s choice for brakes marked a departure from what he ran at Sea Otter. Although the FSA WE groupset includes flat mount hydraulic calipers, Haidet used TRP Spyre SLC mechanical brakes paired with the Ultegra 6870 shifters. The Spyre SLC model features the same piston actuation as other models but substitutes a carbon cable yoke for a reported lower weight and better feel.

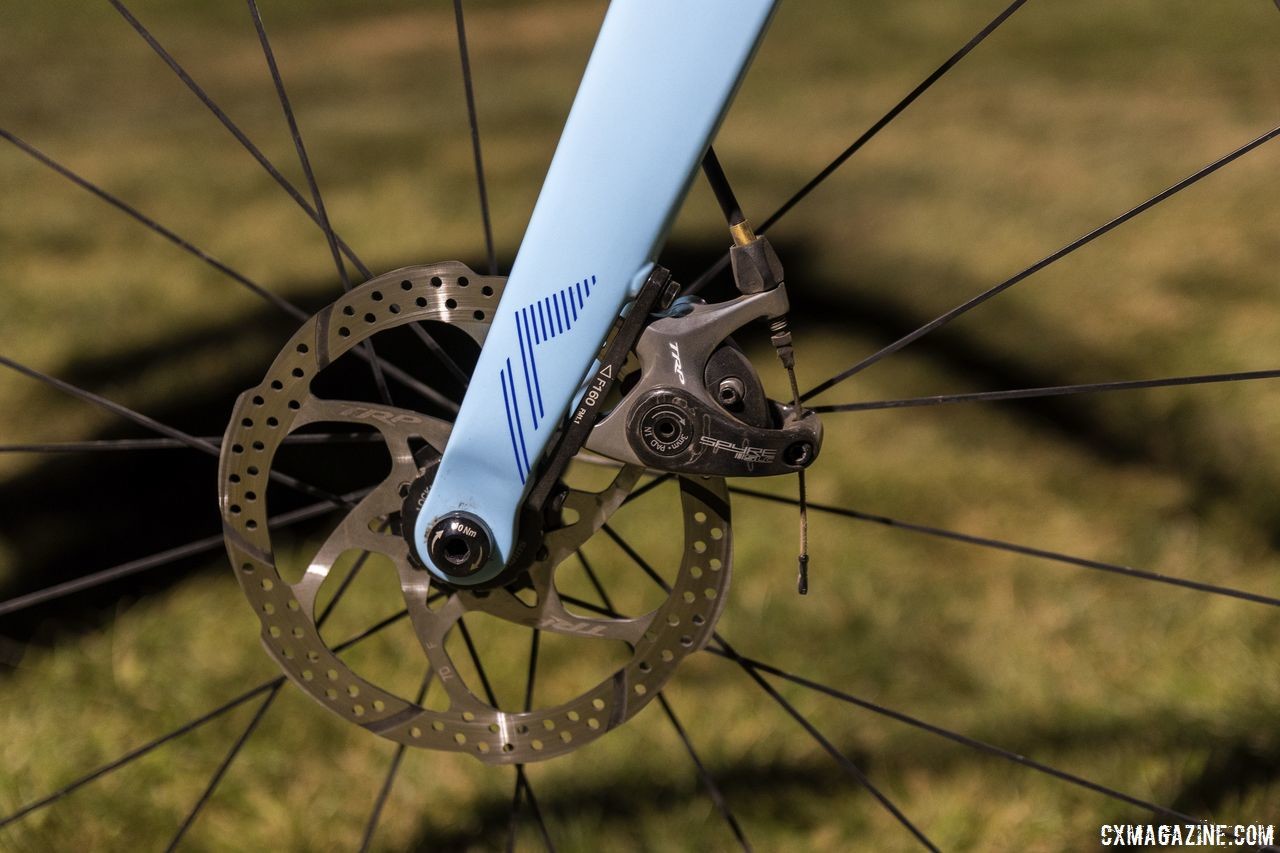

Haidet ran TRP Spyre SLC mechanical disc brakes. Lance Haidet's 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

Haidet ran TRP Spyre SLC mechanical disc brakes. Lance Haidet’s 2018 RenoCross Donnelly C//C Cyclocross Bike. © C. Lee / Cyclocross Magazine

We run down Haidet’s Donnelly C//C in the specs and photo gallery below. We will be keeping our eyes out for the FSA K-Force WE groupset on his ’cross setup.

Lance Haidet’s 2018 RenoCross Donnelly C//C Cyclocross Bike Specifications

Frame: Donnelly C//C, full carbon, BB386, internal cable routing, flat mount brakes, 12mm thru-axle
Fork: Donnelly C//C, internal brake cable routing, flat mount, 12mm thru-axle
Shifter: Shimano ST-6870 Di2, cable brake
Brake Caliper: TRP Spyre SLC, mechanical disc
Rotors: TRP, 160mm
Rear Derailleur: Shimano RD-6870-GS Di2
Front Derailleur: Shimano FD-6870 Di2
Crankset: FSA SL-K, BB386
Chain Rings: FSA, 46/36t
Stem: FSA SL-K
Handlebar: FSA SL-K, carbon, 44cm
Seatpost: FSA SL-K, carbon, 27.2mm, 20mm setback
Saddle: Specialized Power
Pedals: Shimano SPD M9000 XTR
Wheels: Vision Metron 40, carbon, disc-specific
Tires: Donnelly LAS 700c x 33mm tubulars
More Info: donnellycycling.com

Photo Gallery: Lance Haidet’s 2018 RenoCross Donnelly C//C
