Go Geared or Singlespeed in a Snap with the Rad Dad SS: Lundbeck at NAHBS 2014

Pin It
Lundbeck at NAHBS 2014. © James Thomas

Lundbeck at NAHBS 2014. © James Thomas

by James Thomas

Max Lundbeck is an engineer with a background in manufacturing, and he has come up with an innovative convertible geared or singlespeed cyclocross frame in the form of his steel Rad Dad SS build that he showcased at NAHBS. There are other bikes that use modular dropouts to allow either geared or single speed builds, but Lundbeck’s design can be switched from one to the other very quickly and easily. That means a rider could race his or her category on a geared bike, and then race singlespeed shortly after on the same bike—truly a do-it-all machine!

Lundbeck at NAHBS 2014. © James Thomas

Go from singlespeed to gears in a snap with Lundbeck’s NAHBS 2014 ’cross bike. © James Thomas

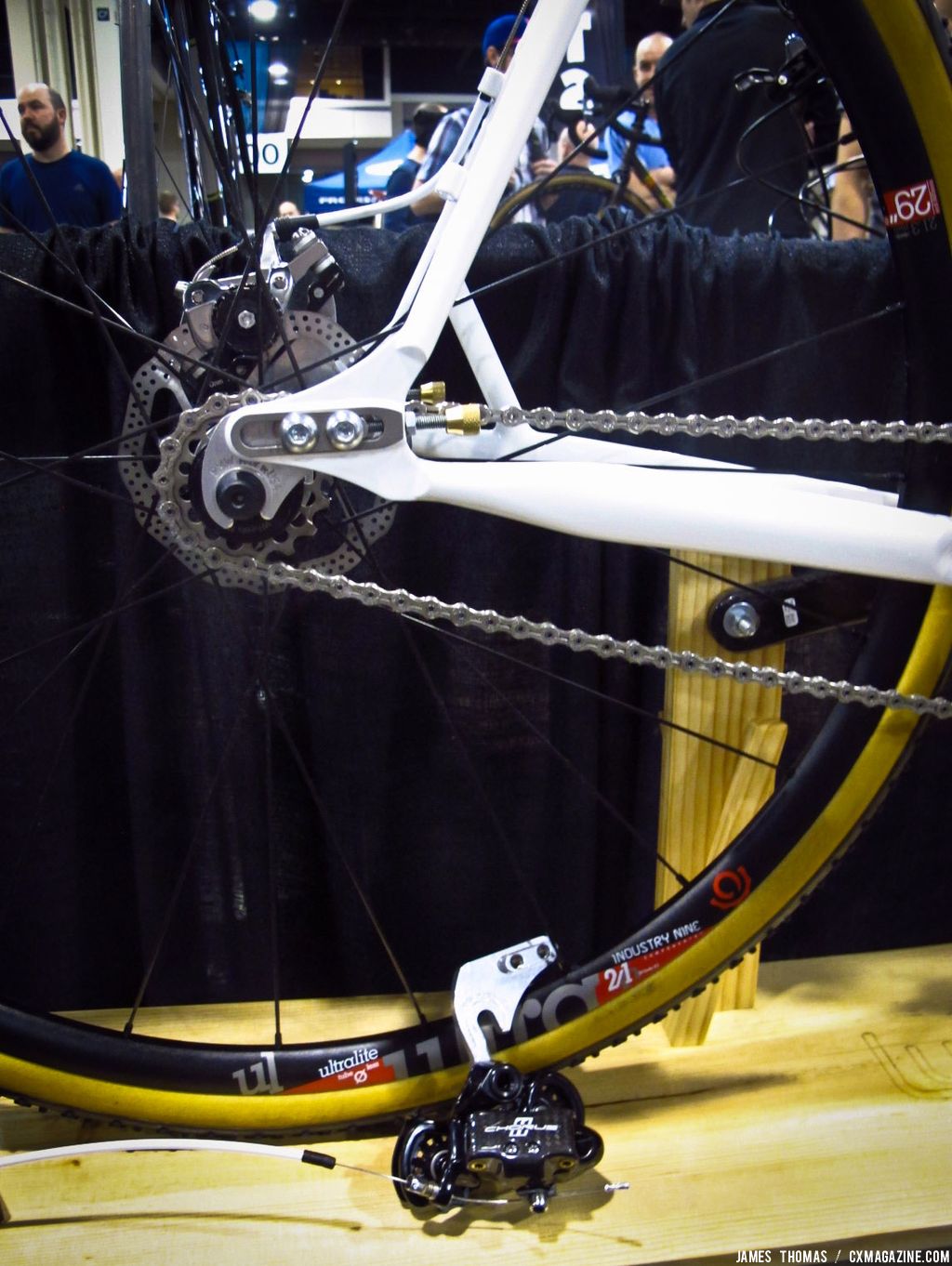

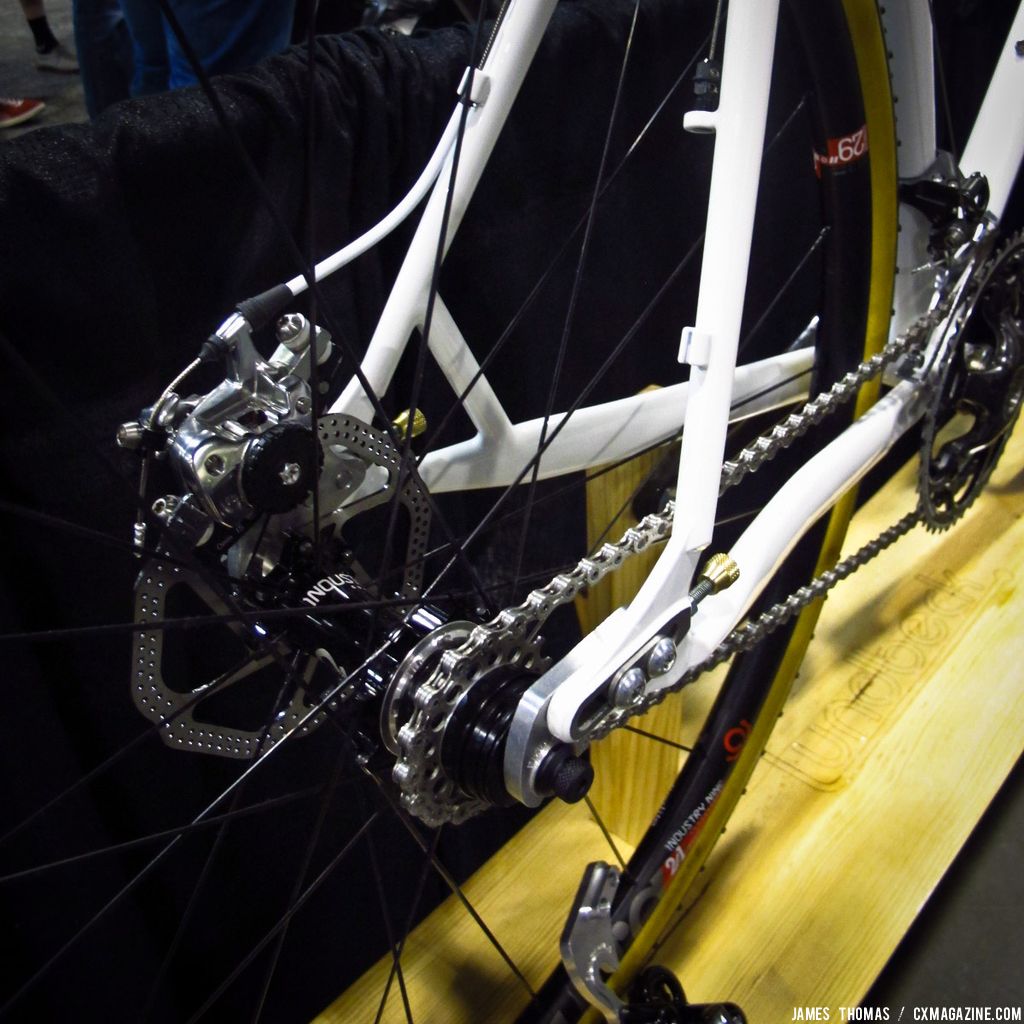

The pictures show the parts necessary to make the transition. The rear derailleur cable has a quick connect coupler brazed onto the seatstay. In order to convert from singlespeed to geared, the rider just switches the right dropout, with derailleur and partial cable attached, and makes the cable connection. Two different chains are needed (with quick connect links) but other than that, everything needed for both configurations stays on the bike.

While there is no MSRP on the bike, a Lundbeck base frame runs $1750 and includes custom geometry, Columbus tubing, stainless dropouts and powder coating by Spectrum Powder Works.

Lundbeck at NAHBS 2014. © James Thomas

Perfect for racing singlespeed in the morning and age group in the afternoon. © James Thomas

Stay tuned for plenty of cyclocross, gravel and general bike eye candy from NAHBS 2014 in the next few days.

More info: lundbeckcycles.com





Cyclocross Magazine, Issue 22, Print and digital subscriptionsHave you subscribed yet? You're missing out if not. Get all-original content and your cyclocross fix throughout the year with a subscription and Issue 23 back copy, with features on Lars van der Haar, Jonathan Page, Elle Anderson and more!
Tagged as: ,
8 comments
paddybogman
paddybogman

If you want a single speed can't you just zip tie the the shift paddles to the brake levers?

James E O'Loughlin
James E O'Loughlin

Kevin, if the SS chain is on, the bike can't shift because the chain tension will not allow it. If need be, a bashguard chainring can also be put on.

Kevin Rooney
Kevin Rooney

Curious, Can it really be used in a single speed race if there is a double front setup?

James E O'Loughlin
James E O'Loughlin

Dave, this paint job is based on the new Team Hungry Cycling's Kit colors...

Dave Placke
Dave Placke

You do realize this would make an excellent team bike for BioWheels Racing right? ;)
