Alto is a three-year young company founded by two cyclist mechanical engineers looking to improve wheel design and build. The result is not revolutionary, but the attention and thoughtfulness are certainly there.

Alto offers a number of alloy and carbon clinchers and tubulars designed for off-road riding. We looked at some of Alto’s wheels at the 2016 Interbike outdoor demo and Sea Otter earlier this year.

In this product spotlight, we are taking a first at Alto’s CTX40 carbon tubular disc brake wheelset. Once we get them mounted and ridden out on the ’cross course this fall, we will have a full review of this carbon wheelset with a unique flange design.

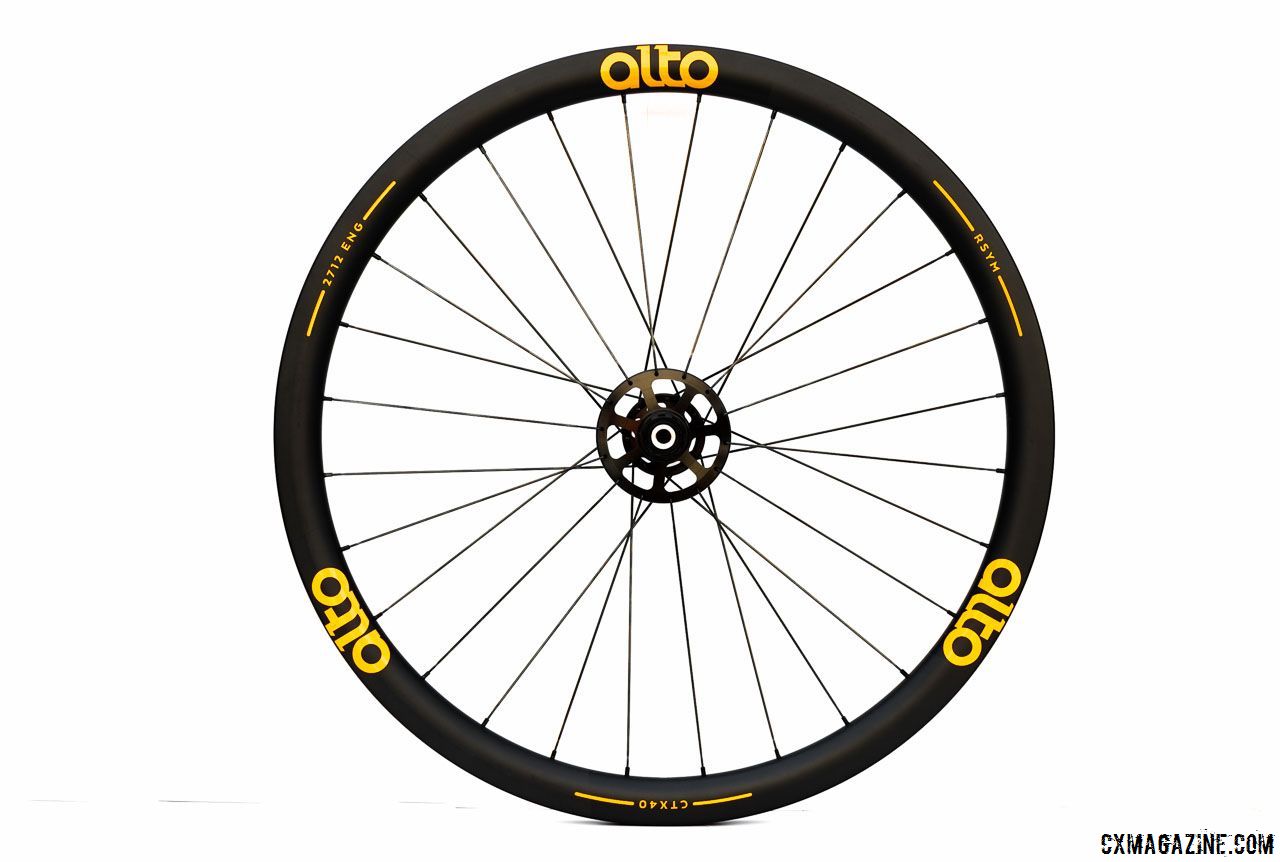

Alto's $2,050 CTX40 carbon tubular wheelset with high-low flanges. photo: courtesy

Alto’s $2,050 CTX40 carbon tubular wheelset with high-low flanges. photo: courtesy

Alto offers both a clincher and tubular version of their 40mm deep rim. Although both are listed under the banner of “cyclocross and gravel,” the CTX40 is likely best viewed as a cyclocross option, while the carbon, tubeless-ready CCX40 clincher is ready for both ’cross and gravel grinding.

CTX40 Goes High-Low on the Flanges

The most remarkable feature of the CTX40 is the asymmetric high-low hub flange design. We have all seen high-low hubs, which are designed to even the spoke bracing angle on a dished wheel, but the Alto hubset high flame is quite large. For the rear hub, the large flame is on the drive side, since the cassette requires more dishing than the rotor, while the front has a larger flange on the rotor side, as the non-rotor side has no dish.

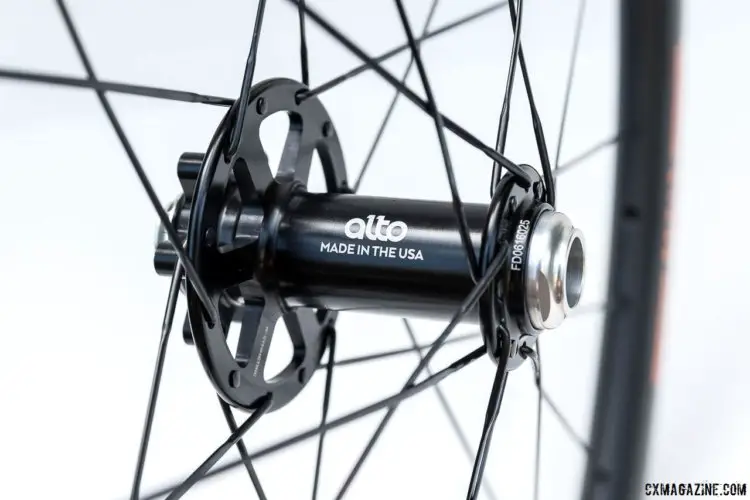

Alto front hub, Hi-Lo flange with high side on brake rotor side. 12 spokes each side, laced x2. © C. Lee / Cyclocross Magazine

Alto CTX40 front hub with high-low flange. High side on brake rotor side. 12 spokes each side, laced 2x. © C. Lee / Cyclocross Magazine

The black, double-butted, bladed spokes have a standard j-bend and are laced radially on the rear drive side and 2x everywhere else. The lacing pattern is similar to Mavic’s ISO-pulse lacing pattern. With the cassette and rotors in place, the flange diameters are hidden. The disc rotor mounts are a six-bolt design.

Alto customizes its wheels based on buyers’ needs. Front axles come in quick release and 12mm or 15mm thru-axle options, and rear axles allow a choice of quick release and 12x135mm or 12x142mm thru-axle. The hub options are Shimano/SRAM, Campagnolo and SRAM XDR. Alto also provides a choice of 15 decal colors for maximum customization.

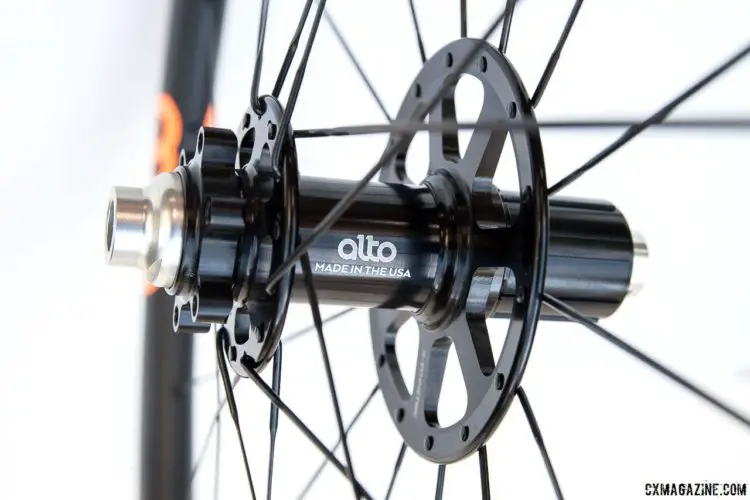

Hi-lo flange rear hub has high flange on the drive side with 14 radial spokes. The low flange brake rotor side has 14 X2 spokes. © C. Lee / Cyclocross Magazine

Alto’s wheels come made-to-order with several hub and axle choices. The drive side on the rear is laced radially and the non-drive side 2x. © C. Lee / Cyclocross Magazine

The measured weight for the wheelset is 1,429 grams. The front 15mm thru-axle front wheel weighed in at 629 grams and the rear thru-axle at 800 grams.

Rim Geometry and Tubular Gluing

The CTX40 has a 40mm deep rim section with a 26mm outside width. The tire bed width is 20mm.

The use of tubulars for gravel racing is not unheard of, but the most common use of a wheelset like this will likely be for cyclocross. The rim bed depth of 4.5mm is deeper than the optimal 3.4mm—based on a mathematical calculation—for a 33mm cyclocross tubular tire, but with the exception of the HED Stinger 3 CX, the tubular wheelsets we have reviewed recently have had this rim bed depth that is closer to that of a road tubular.

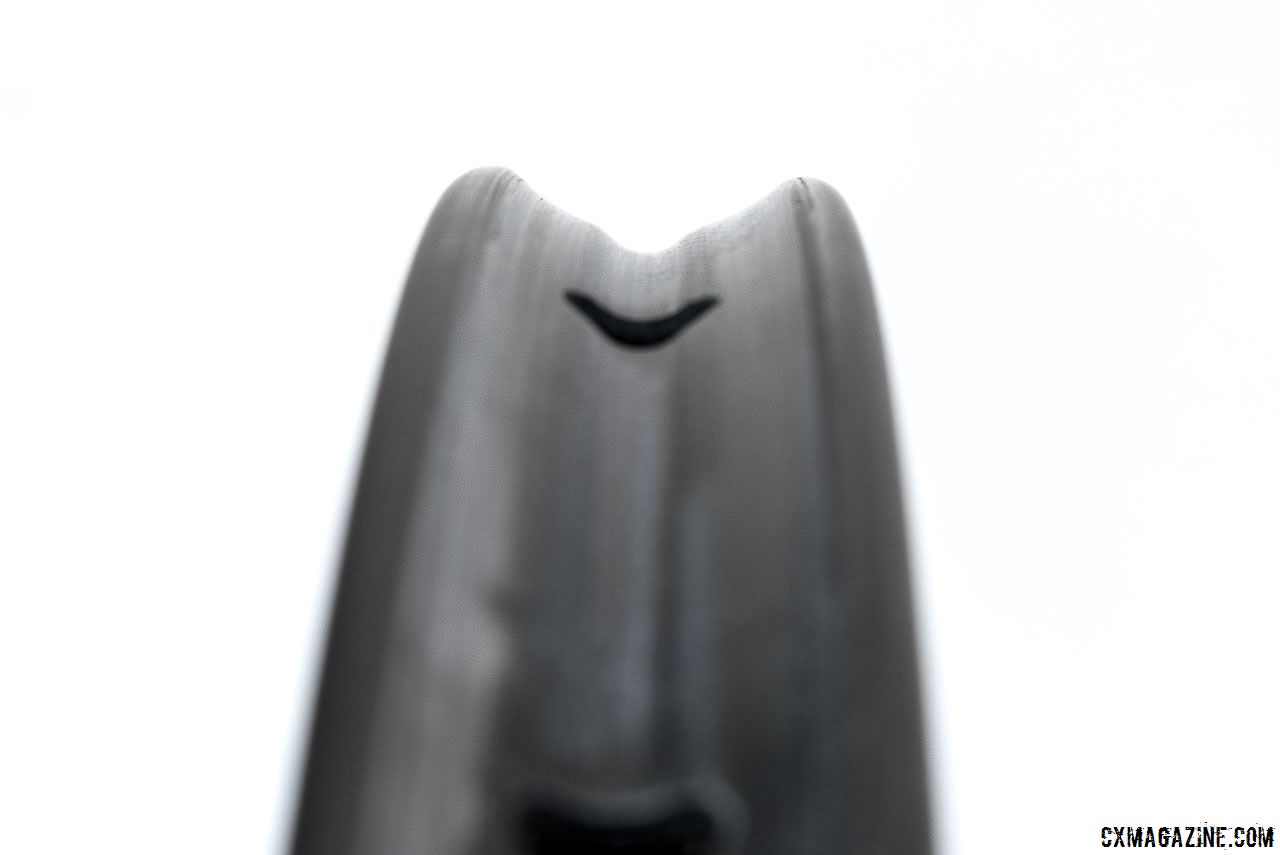

The rim bed depth of the CTX40 is similar to a road tubular, which is common among wheels we have reviewed. © C. Lee / Cyclocross Magazine

The 4.5mm rim bed depth of the CTX40 is similar to a road tubular, which is common among wheels we have reviewed. © C. Lee / Cyclocross Magazine

The deeper bed reduces the glue-bond area for the rim when 32-33mm ’cross tires are mounted, and workarounds such as using additional layers of glue or tape to fill the rim channel are often required.

This challenge is not unique to the CTX40, but it is something we will have our eye on when we glue up a set of cyclocross tubulars in the coming days.

Stay Tuned for a Ride Review

At first glance, it is evident a lot of thought has gone into the design of Alto’s wheels. The high-low flange design and hubs, combined with the lacing pattern and hand-tensioning of the spokes, suggests the CTX40 wheels are built to last.

We are currently getting our review set of CTX40 wheels glued up and ready to ride. Stay tuned for a full review after we get the chance to put them to the test out on the cyclocross course this fall.

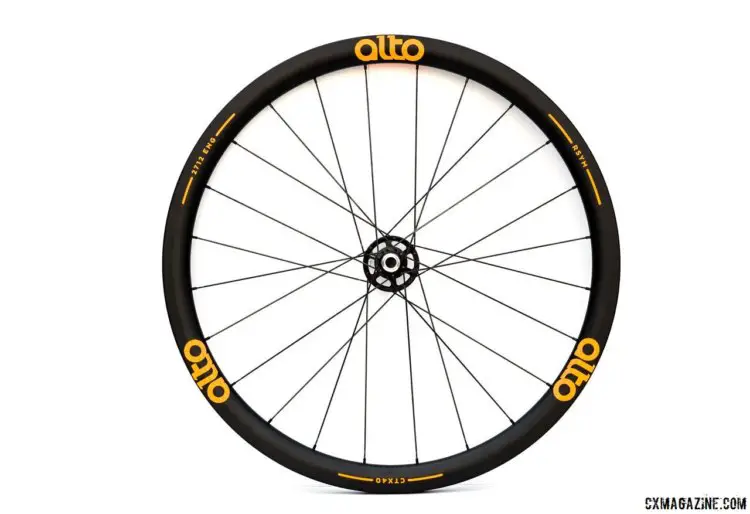

Alto's $2,050 CTX40 carbon tubular wheelset with high-low flanges. photo: courtesy

Alto’s $2,050 CTX40 carbon tubular wheelset with high-low flanges. photo: courtesy

Alto CTX40 Carbon, Disc Brake Tubular Specifications

MSRP: $2,050
Rim: Carbon; 40mm deep, 26mm outside width, 20.5mm wide bed, 4.5mm rim bed depth
Hub: Alto aluminum; high-low flange design; 24-hole front, 28-hole rear
Axles: Front: quick release, 12mm or 15mm x 100mm thru-axle; Rear: QR, 12x135mm or 12x142mm TA
Spokes: Bladed, double-butted, black; laced radially rear drive side, 2x elsewhere
Weight: 1,429 grams (actual); Front: 629 grams (actual) for 15mm thru-axle, Rear: 800 grams (actual)
More info: altocycling.com
