It can be a challenge to report on new components that are raced in the public but are actively shielded from close-up inspection.

At Interbike we got heads up that Powers and Wout van Aert might be riding something special this season.

Of course, despite receiving the direct tip that would likely result in some pre-launch press, we couldn’t get any details on what it might be.

Even armed with this knowledge, official requests to photograph the bikes in question were quickly denied by teams.

It’s an awkward situation for journalists. Chasing good photos and counting cogs and teeth when riders and mechanics are advised to try to keep the parts hidden is a funny dance. We tried it at four different races, and here’s the result.

Powers and Van Aert’s Dirty Dozen

It didn’t take a crystal ball to predict that the “something special” would be an extra cog and one less chain ring for the two cyclocross eTAP racers.

While most of the pro cyclocross peloton has been one with SRAM Force and its 1x clutch-derailleur drivetrain, Powers and Van Aert have been famously dedicated to the dark side of 2x through their SRAM Red eTAP systems. Yet with a few notable chain drops and SRAM’s mountain groups and competitors moving to 12-speeds, “another year, another gear” would be a good guess.

Armed with this info, we searched through images of Jeremy Powers making his debut for Fuji/Pactimo/SRAM at Rochester Cyclocross and indeed confirmed that in early September, the four-time National Champion was testing a 1x eTAP drivetrain on his way to seventh and second places.

Jeremy Powers raced a prototype SRAM Red eTAP 12-speed 1x drivetrain in September at Rochester. © Bruce Buckley

Jeremy Powers raced a prototype SRAM Red eTAP 12-speed 1x drivetrain in September at Rochester. © Bruce Buckley

We packed our cameras for World Cup Waterloo and Jingle Cross hoping to get an up-close look.

Testing Delayed, Unexpectedly

As you might already know, Powers suffered from a throat infection that derailed his early season, and Van Aert had last-minute team, bike and sponsor swaps that threw a wrench in his setup. He showed up to Waterloo with SRAM Red eTAP 2x on his Stevens Superprestige, as we profiled from the race.

Powers made his return and took in Day 1 of Cincinnati piloting the 1x prototype system to 29th place, giving Brandon Grant a blurry, muddy glimpse of the drivetrain in action.

Jeremy Powers' Prototype SRAM Red eTAP 12-speed 1x drivetrain as seen at Cincinnati Cyclocross Day 1. © B. Grant

Jeremy Powers’ Prototype SRAM Red eTAP 12-speed 1x drivetrain as seen at Cincinnati Cyclocross Day 1. © B. Grant

At the picturesque, historic Superprestige Gavere, we spied the SRAM eTAP 1x drivetrain on one of Van Aert’s bikes. The team mechanics and a SRAM representative were busy making adjustments on the bike while we photographed the steed at full zoom.

Ready to be put away: Wout van Aert's 1x 12-speed bike as seen at Superprestige Gavere, but the World Champ opted for 2x 11-speed for the hilly, muddy course. Wout van Aert's prototypye SRAM Red eTAP 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

Ready to be put away: Wout van Aert’s 1x 12-speed bike as seen at Superprestige Gavere, but the World Champ opted for 2x 11-speed for the hilly, muddy course. Wout van Aert’s prototype SRAM Red eTAP 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

Wout van Aert's prototypye SRAM Red eTAP 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

Wout van Aert’s prototype SRAM Red eTAP 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

As expected, when we approached to ask for a better look, they declined and put it away.

12-Speed Confirmed

When we approached the team to photograph Van Aert 1x bike, they declined, but in doing so, confirmed the extra cog we were predicting but weren’t close enough to validate.

The XDR cassette looks like it uses steel cogs paired with an alloy 36t large cog. Wout van Aert's prototypye SRAM Red eTAP 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

The XDR cassette looks like it uses steel cogs paired with an alloy 36t large cog. Wout van Aert’s prototype SRAM Red eTAP 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

That's a tiny small cog. We're looking at what appears to be a 10-36 XDR cassette. Wout van Aert's prototypye SRAM Red eTap 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

That’s a tiny small cog. We’re looking at what appears to be a 10-36 XDR cassette. Wout van Aert’s prototypye SRAM Red eTap 1x 12-speed drivetrain. © A. Yee / Cyclocross Magazine

“You can photograph his 11-speed bike,” they said.

With that unintentional confirmation in hand, we took them up on the offer:

Wout van Aert's 11-speed SRAM Red eTAP 2x bike raced at Superprestige Gavere. © A. Yee / Cyclocross Magazine

Wout van Aert’s 11-speed SRAM Red eTAP 2x bike raced at Superprestige Gavere. © A. Yee / Cyclocross Magazine

We had our cameras ready to get a closer look at what the World Champ would be riding during the race, but on the hilly, muddy Gavere course, Van Aert opted to race his 2x drivetrain bikes on his way to third place.

For the mud and hillls of Superprestige Gavere, Wout van Aert kept with his SRAM eTAP 2x 11-speed drivetrain. © A. Yee / Cyclocross Magazine

For the mud and hills of Superprestige Gavere, Wout van Aert kept with his SRAM eTAP 2x 11-speed drivetrain. © A. Yee / Cyclocross Magazine

On a course with a lot of vertical change that demanded frequent shifts and frequent bike changes, we’re guessing that the smaller gaps between the cogs—or having three or more identical bikes available—swayed his decision to stick with the double.

Six days later, on a dry, fast and flatter World Cup course in Tabor, we finally saw Van Aert complete a race on the eTAP 1x drivetrain. The components appear identical to what we saw on Powers’ bike in September.

Wout van Aert raced his prototype SRAM Red eTAP 1x 12-speed drivetrain at the UCI Cyclocross World Cup in Tabor. © Bart Hazen / Cyclocross Magazine

Wout van Aert raced his prototype SRAM Red eTAP 1x 12-speed drivetrain at the UCI Cyclocross World Cup in Tabor. © Bart Hazen / Cyclocross Magazine

XDR Becomes Reality

Beyond one extra cog and a missing front derailleur, what’s different?

Without official details, of course anything we write is just a supposition or educated guess, and if you want to take issue on the “educated,” fair enough.

The cassette, beyond adding an extra cog, moves to SRAM’s XDR configuration with a 1.85mm-wider freehub than the mountain XD format (the mountain cassettes’ largest cogs overhang the drive side hub flange).

Its tallest gear relies on a tiny 10-tooth cog and looks to feature an alloy largest cog for weight savings. Our calibrated eyes reveal a 10-36t wide-range cassette, but it wouldn’t be a stretch to guess there will be multiple front and rear gearing options.

In fact, Kei Tsuji already has seen a 10-28 cassette in action in Japan and photographed the parts.

Road-centric websites lined up and tap danced to get rights to Tsuji’s eTAP photos, and the speculation began.

It’s worth noting that while an XD/XDR cassette tighter than 10-42t or 11-42t from SRAM is long-awaited news, especially since the XDR spec has been out for several years, there are other similar gearing options out there for consumers, minus one cog. As we saw at Interbike, Leonardi Factory offers its 9-36t, and 3T unveiled its hard-to-find Bailout and Overdrive 9-32t XDR cassettes.

Four Arms, More Grip and Power

Beyond XDR cassettes, the drivetrain adopts some other notable changes. The chain is asymmetrical, flat on the outer plates and sculpted on the inner plates to better grab the shift ramps. No, we can’t see the outer plates very well in our photos, but in Tsuji’s you can.

The shifters also look to have a slightly tweaked shape compared to the current eTAP. The tops of the hoods appear to be a bit flatter and less pointy up front, but frankly, it’s hard to tell.

Jeremy Powers' prototype SRAM Red eTAP 12-speed 1x drivetrain reveals a slightly modified hood shape compared to existing SRAM Red eTAP HRD levers, with a flatter top. © Bruce Buckley

Jeremy Powers’ prototype SRAM Red eTAP 12-speed 1x drivetrain reveals a slightly modified hood shape compared to existing SRAM Red eTAP HRD levers, with a flatter top. © Bruce Buckley

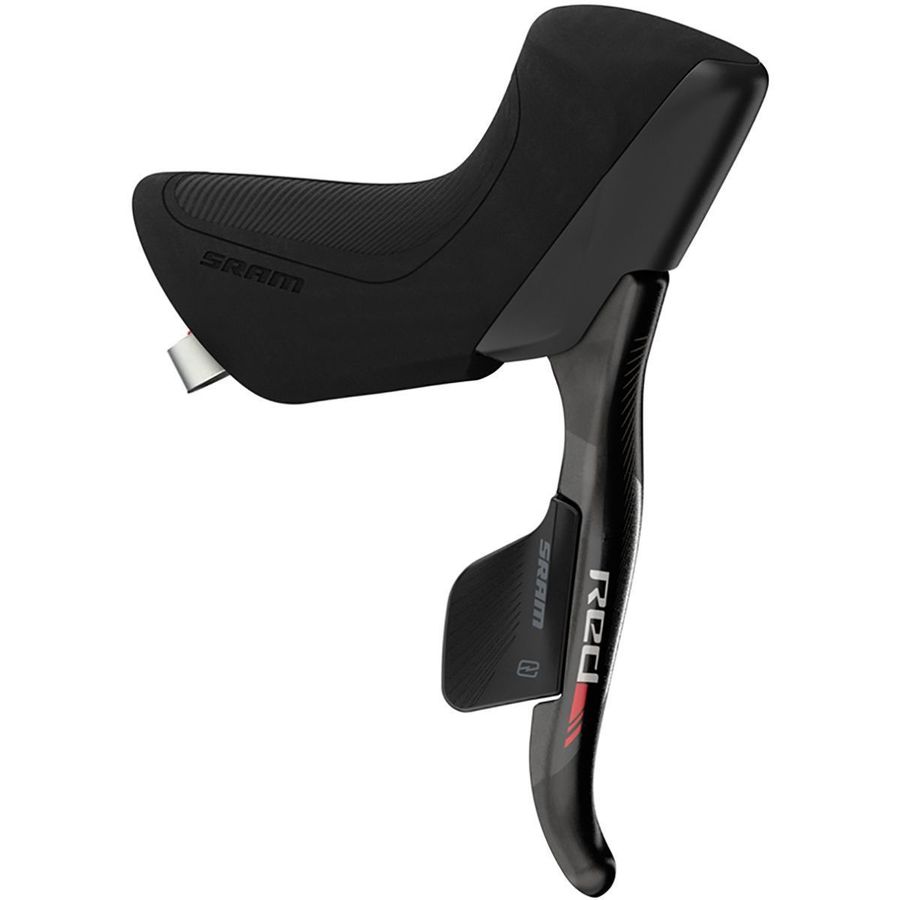

They look quite similar to the levers seen on Van Aert’s 11-speed bike from Gavere. Compare Powers’ levers above to this stock photo of the current SRAM Red eTAP 11-speed levers:

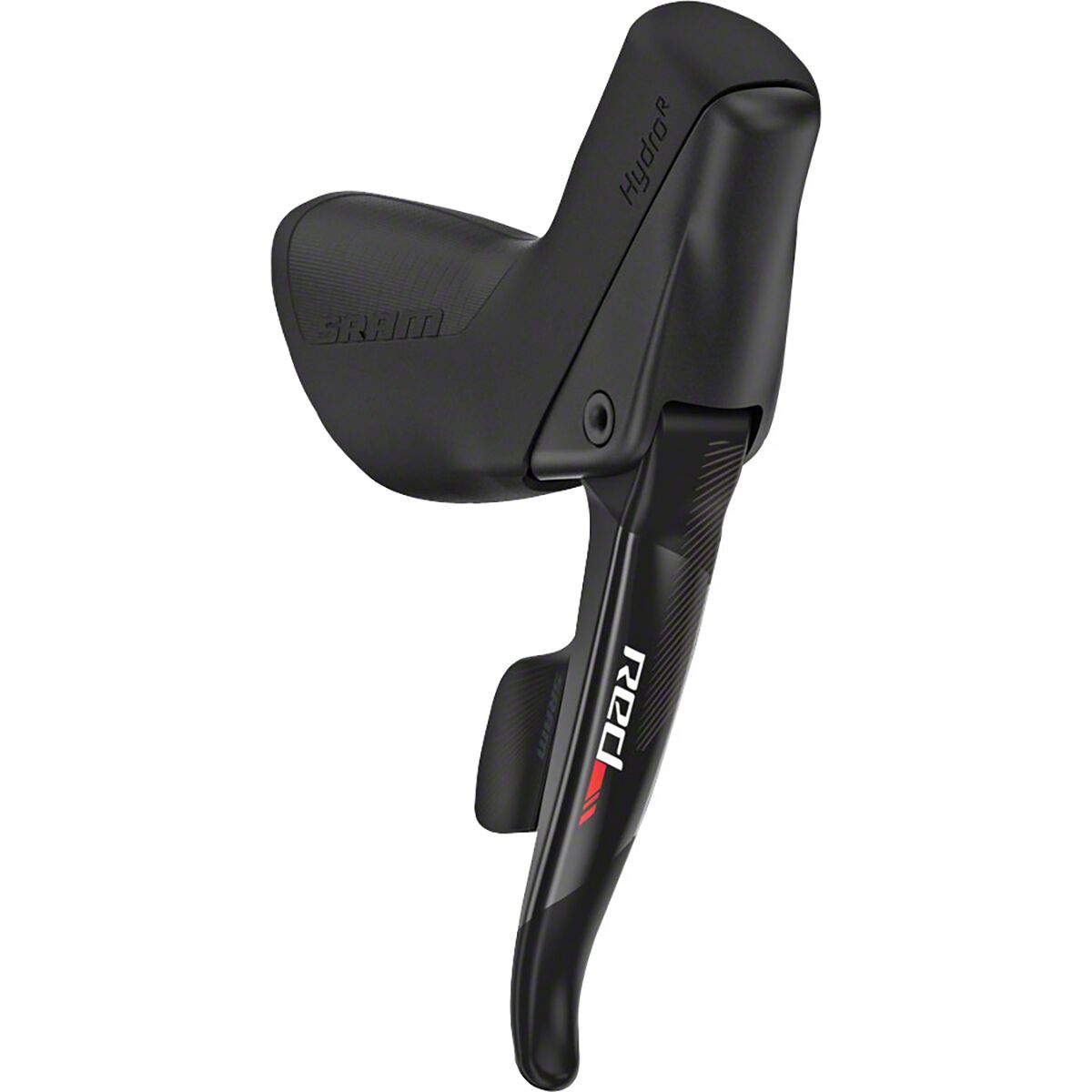

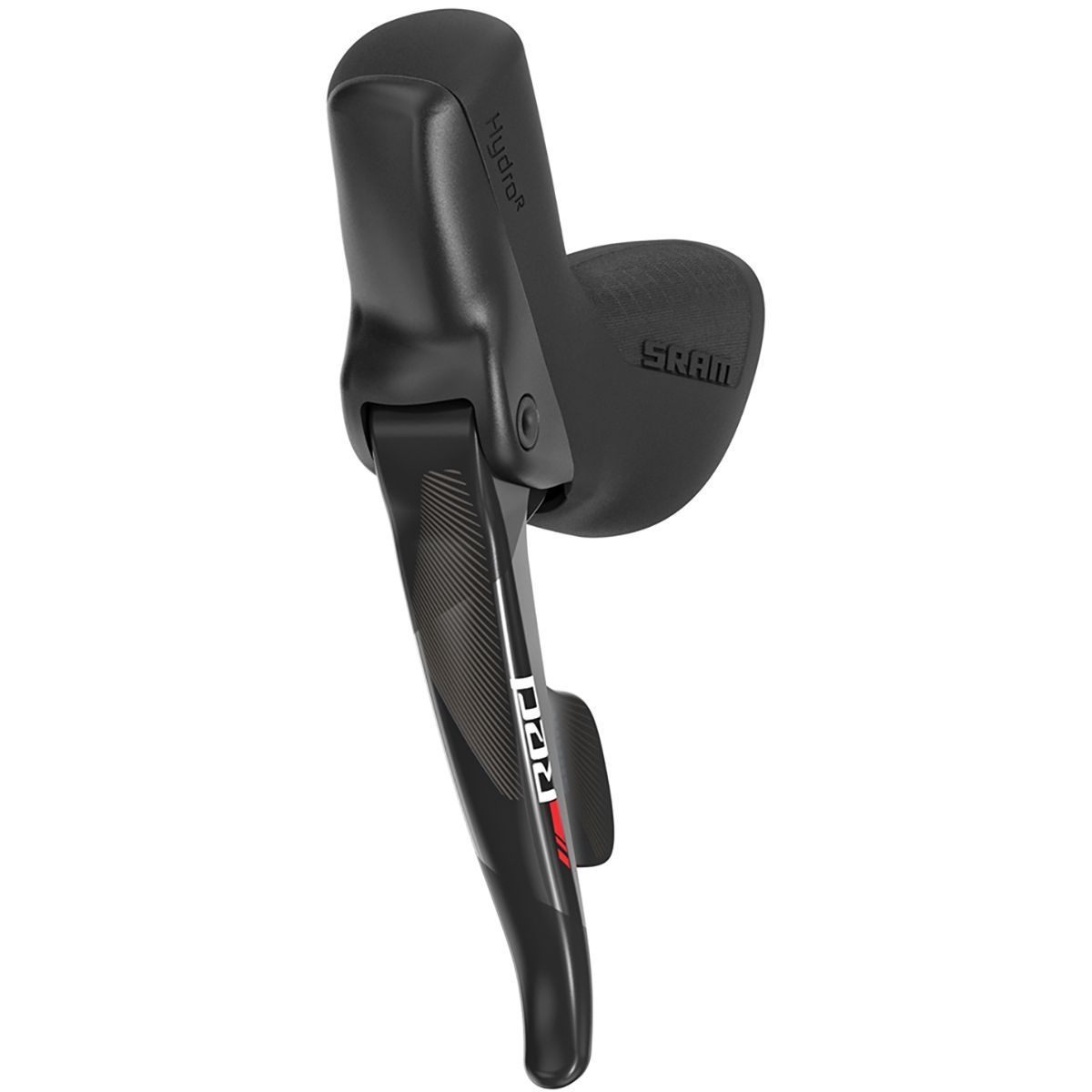

SRAM's 11-speed eTAP HRD levers.

SRAM’s 11-speed eTAP HRD levers.

Perhaps there’s now a bigger shift paddle and some texture to the brake lever, but any more details and we’d be pulling your lever and chain.

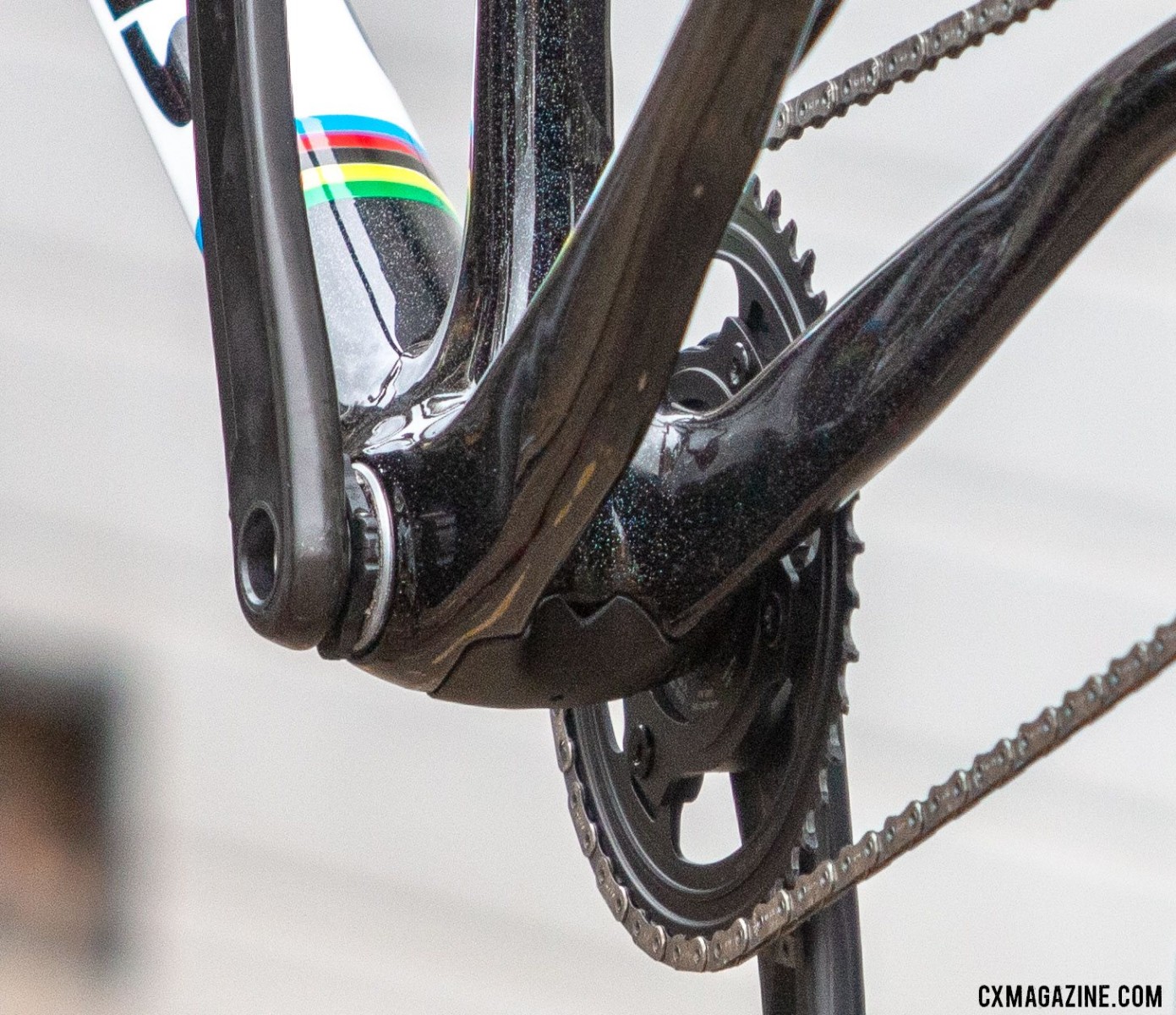

As for the cranks, Powers and Van Aert’s crankset also appears to be the same as used on the road 2x prototypes Tsuji spotted in Japan, albeit without the direct mount double chainrings:

Powers and Van Aert’s carbon crankarms look like they could use direct mount rings and clearly feature a Quarq power meter, but rely on a four-arm spider to connect to an X-Sync wide/narrow chainring. Direct mount wide/narrow rings that offer proper chainline should be in the works, but for now, the hybrid approach will have to do.

Jeremy Powers' prototype SRAM Red eTAP 12-speed 1x drivetrain as seen in September at Rochester. You can see the Quarq power meter and 4-arm spider. © Bruce Buckley

Jeremy Powers’ prototype SRAM Red eTAP 12-speed 1x drivetrain as seen in September at Rochester. You can see the Quarq power meter and 4-arm spider. © Bruce Buckley

It wouldn’t be stretch to guess the system adopts SRAM’s new DUB bottom bracket and 28.99mm crankset axle “standard,” but we’d be lying if we said that’s exactly what we see in the photos. However, SRAM is all in with DUB. Throw out your GXP and 30mm cranks. There’s now something in between.

Wout van Aert raced his prototype SRAM Red eTAP 1x 12-speed drivetrain at the UCI Cyclocross World Cup in Tabor. Unlike his black cassette we saw in Gavere, Van Aert's cassette in Tabor looks to be all silver. © Bart Hazen / Cyclocross Magazine

Wout van Aert raced his prototype SRAM Red eTAP 1x 12-speed drivetrain at the UCI Cyclocross World Cup in Tabor. Unlike his black cassette we saw in Gavere, Van Aert’s cassette in Tabor looks to be all silver. © Bart Hazen / Cyclocross Magazine

eTAP in the Clutch?

While World Champs already race 1x electronic drivetrains without clutch rear derailleurs, it would be a chain slap in the face for SRAM to avoid paying attention to chain tension.

After all, Shimano-sponsored athletes like Katerina Nash have piloted electronic clutch-based 1x systems for years now, and Kona’s Kerry Werner has taken Shimano’s gravel push into the mud with its RX-805 Ultegra mech.

Jeremy Powers' Prototype SRAM Red eTAP 12-speed 1x drivetrain as seen at Cincinnati Cyclocross Day 1. © B. Grant

Jeremy Powers’ Prototype SRAM Red eTAP 12-speed 1x drivetrain as seen at Cincinnati Cyclocross Day 1. © B. Grant

The rear derailleur used by Powers and Van Aert does not have SRAM’s telltale “Roller Bearing Clutch” or “Type 2.1” labels as found on the SRAM Force 1 changer, but remember they’re riding prototypes.

Clutch performance? Jeremy Powers' prototype SRAM Red eTAP 12-speed 1x drivetrain may employ a roller bearing clutch inside the knuckle, but isn't immune to a bit of detensioning on the bike's drop before a remount. © Bruce Buckley

Clutch performance? Jeremy Powers’ prototype SRAM Red eTAP 12-speed rear derailleur may employ a roller bearing clutch inside the knuckle, but isn’t immune to a bit of detensioning on the bike’s drop before a remount. © Bruce Buckley

While a conservative guess might be that the rear derailleur will employ a Type 3 (Type 3.1, Type 4?) or similar mechanical roller bearing clutch, wouldn’t it be neat to take advantage of the built-in battery and electronics to have a smart electronic tensioner?

One day, if not in time for this product release, it should be possible to employ accelerometers or smart switches that add tension when it’s bumpy or when you’re not shifting and turn it off when unnecessary. Such sophistication might even extend battery life by allowing the servos to change gears without fighting the tensioner.

Looking at Powers and Van Aert’s rear eTAP derailleur, we honestly can’t tell what type of knuckle it is, but except that it doesn’t look brass or bloody.

Speculate and Wait

If a World Champion is racing a prototype at high-stakes World Cups, it’s a safe bet that the component isn’t too far from production and has likely passed some stealth Chicago cyclocross testing.

Might Van Aert rely on the new drivetrain to defend his World Championship title and kick off the official launch?

Stay tuned.
