Surprise! Shimano 105 5800 Moves to 11-Speeds, Updated with Trickle-Down Tech

Pin It

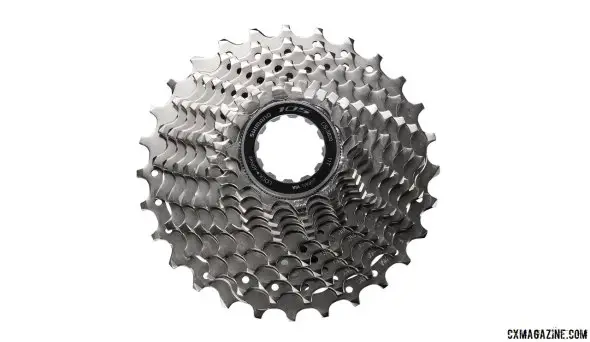

Shimano's new 105 5800 11-speed group features three cassettes: 12-25, 11-28 and 11-32t.

Shimano’s new 105 5800 11-speed group features three cassettes: 12-25, 11-28 and 11-32t.

We’ve seen this play out three times before, and so nobody should be surprised that Shimano’s affordable racing group, 105, has inherited the extra gear and trickle-down technology of Ultegra and Dura-ace and has gone 11-speed with the just-announced Shimano 105 5800 component group. (We expect a similar official announcement about SRAM Rival any day now.)

Announced on April Fools’ Day, but certainly not a joke, Shimano’s 105 5800 group now inherits almost all of Ultegra 6800′s new technology, including a redesigned hood shape, the new redesigned front derailleur with a longer lever arm and stabilizer bolt, the new four-arm, compact gearing-compatible crankset and perhaps easiest to ignore, but possibly the most impactful, the new polymer coated shift cables.

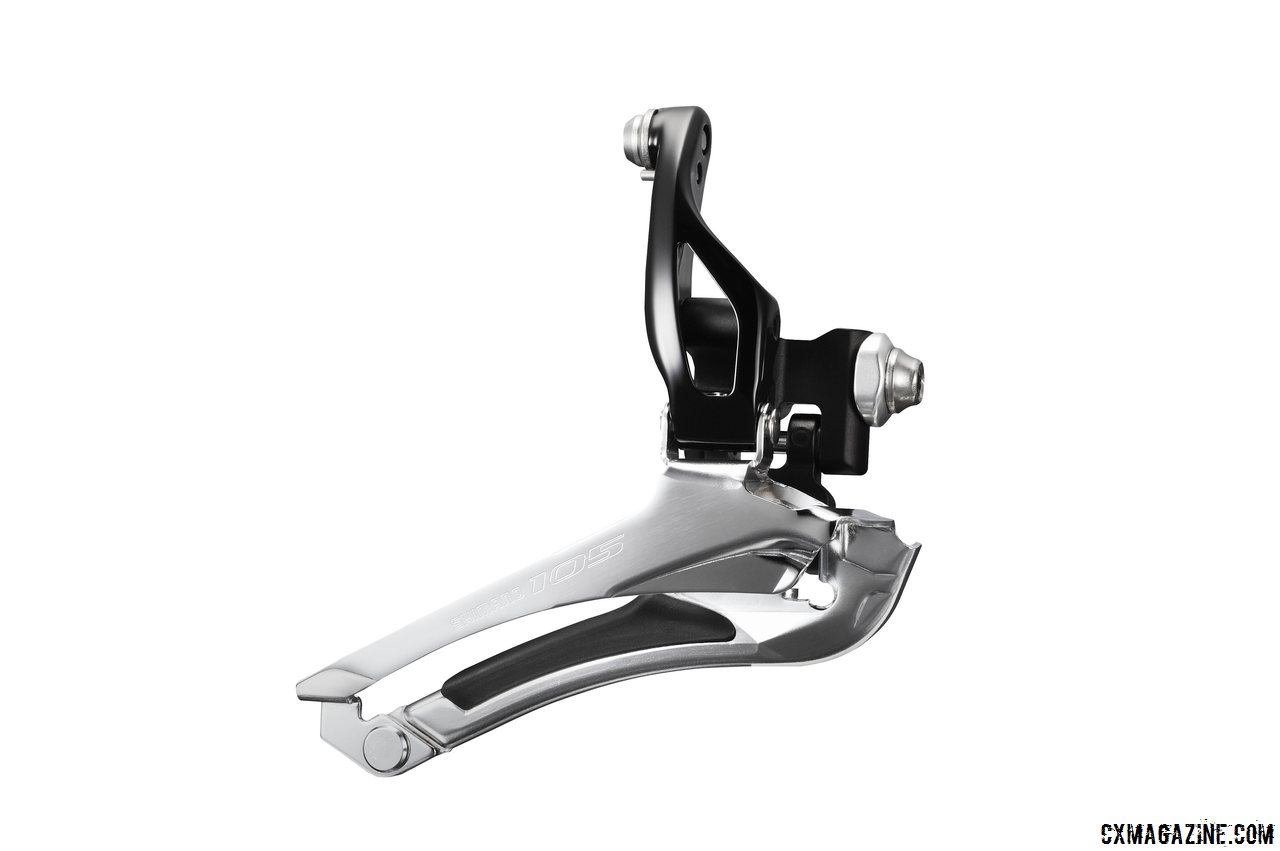

Shimano's new 105 5800 front derailleur inherits the longer pull arm, new spring and stabilizer bolt - front shifting might be the most noticeable change on new 105.

Shimano’s new 105 5800 front derailleur inherits the longer pull arm, new spring and stabilizer bolt – front shifting might be the most noticeable change on new 105.

We’ve spent some time on 6800 and 9000 (see the upcoming issue 24) and have come away most impressed especially with the front shifting and hood shapes. We have high hopes for Shimano 105. The light action of the shifting on 6800 and 9000 is great—it starts to approach the feel of Di2, but the jury is still out as to whether mud causes more problems with the tighter spacing and lighter spring action.

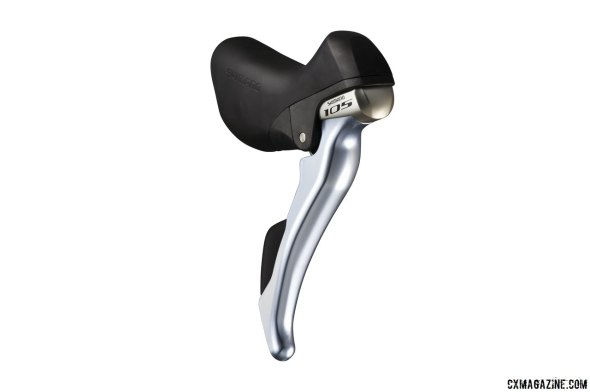

Shimano's new 105 5800 11-speed STI levers feature reach adjustment, and our favorite feature, two front chainring trims for a silent drivetrain.

Shimano’s new 105 5800 11-speed STI levers feature reach adjustment, and our favorite feature, two front chainring trims for a silent drivetrain.

Gearing options on the new Shimano 105 5800 11-speed group involve a wider range of options, with three cassettes (12-25, 11-28 and 11-32t) and three chainring options (39/53, 34/50 and 36/52) but if you’re reading this you might lament the lack of a 36/46t option. Not all is lost, as Shimano offers its Ultegra 6800 crankset with 36/46t  chainrings, but it’s important to note the 46t chainring on this option is not HollowGlide and instead features cosmetic plastic caps to imitate the flush look of a HollowGlide chainring that perfectly mates with the four-arm spiders.

With these limitations of the 105 5800 crankset, if you’re looking for components to build up a cyclocross bike, you’ll probably want to upgrade from 105 5800 to the Ultegra 6800 crankset if you want the 36/46t chainrings. That will be most cost-effective than trying to separately source Ultegra 36/46 rings (we’ve been unsuccessful, and Shimano’s reps say they’re hard to get) and swap out the stock rings on the 105 crankset. Or, just stay with a tradition five-arm crankset 110mm BCD or 130mm BCD 105 cranksets, which Shimano will continue to offer as well, and will be compatible with aftermarket rings from Rotor, WickWerks and Praxis among others. You could also use the excellent Shimano CX70 or CX50 cyclocross cranksets, despite both being 10-speed cranksets.

Shimano's new 105 5800 11-speed group comes in silver and black, and has the four-arm design that accepts compact, cx or road ring sizes. But a 36/46 version is not planned - only Ultegra 6800 has that.

Shimano’s new 105 5800 11-speed group comes in silver and black, and has the four-arm design that accepts compact, cx or road ring sizes. But a 36/46 version is not planned – only Ultegra 6800 has that.

To work with the new wide-range 11-32t cassette, the new medium cage 105 GS rear derailleur will accept up to a 32t cog, a two tooth increase from the previous GS model. Since we’ve been able to push a 6770 short cage rear derailleur to work with 36t rear cogs (at your own risk, depends on the derailleur hanger, YMMV), some cyclists might get the longer GS to work with a 34t if you can find an 11-speed cassette that goes that big.

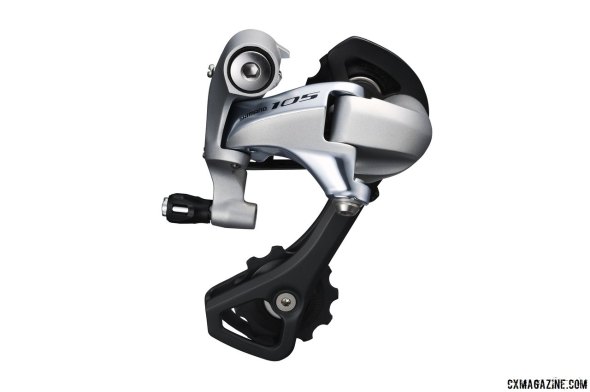

Shimano's 105 5800 11-speed group features short cage (SS) or medium cage (GS) rear derailleurs. GS rear derailleurs will accept a 32t cog. (Don't tell anyone but we've used SS on 36t on some bikes!)

Shimano’s 105 5800 11-speed group features short cage (SS) or medium cage (GS) rear derailleurs. GS rear derailleurs will accept a 32t cog. (Don’t tell anyone but we’ve used SS on 36t on some bikes!)

The 105-level HG600 chain marks the return by Shimano to asymmetric chains, after its attempt with the 7900/7901 asymmetrical chain but then reverting to a symmetrical chain with the Dura-Ace chain. The inner links get Shimano’s Sil-Tec PTFE inner link coating, a coating similar to that found on the new shift cables. Ultegra also gets arunning change with the new HG700 asymmetrical, directional chain. Both chains still feature Shimano Chain Connector Pins, after a one-month ill-fated experiment with master links with 7900.

The new Shimano 105 11-speed group also comes with black and silver finishes, and either 68mm BSA bottom bracket cups or BB86 Press Fit bearings.

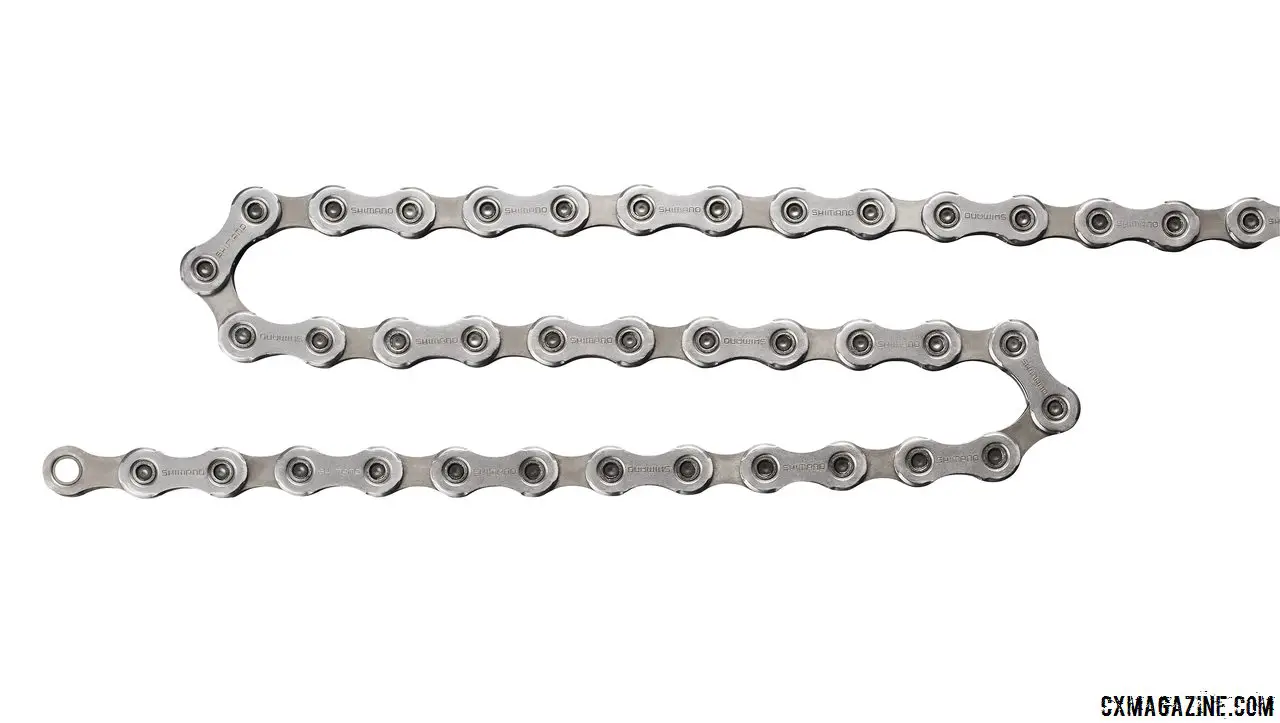

The new HG600 11-speed 105-level chain is an asymmetric design with a Sil-Tec (coated) inner link plate for smooth and reliable shifting. Shimano's new 105 5800 11-speed group.

The new HG600 11-speed 105-level chain is an asymmetric design with a Sil-Tec (coated)
inner link plate for smooth and reliable shifting. Shimano’s new 105 5800 11-speed group.

See the slideshow below for a full image gallery of the new Shimano 105 5800 components.






Cyclocross Magazine, Issue 22, Print and digital subscriptionsHave you subscribed yet? You're missing out if not. Get all-original content and your cyclocross fix throughout the year with a subscription and Issue 23 back copy, with features on Lars van der Haar, Jonathan Page, Elle Anderson and more!
Tagged as: , , ,
12 comments
Dr_UNIX
Dr_UNIX

Hello?  Just which one of the 11-23, 11-25, 11-28, 12-25  cassettes does Shimano actually think is targeted to the CX market to go with 46-36 chainrings?  I doubt even world champs need an 11T cog on a CX bike.  So you're stuck with little range (12-25) or a useless cog or two (11-<anything>).


Dr_UNIX
Dr_UNIX

Shimano's cycling subgroup VP should be fired.  Yet more shoe-horn-the-whole-world-into-1-mold herd mentality crap Shimano keeps bringing us (with the rest of the industry following along).

Where is the 42T or 40T chainring that is also popular in my neck of the CX world?  And, if you're going to design a whole new BCD, why are you sticking with the old 110BCD limit?  Since Shimano refuses to offer triples any more, how about something with less than 34T?  They had an opportunity to design something that would at least do 32T.

Instead of 15 cassette choices (per Sheldon Brown) we now have _5_ (well, 6 if you can afford a $300 Dura-Ace cassette).

Bike componate manufactoers are all about removing choice in each move of technology 9->10->11 speeds.

I predict we'll be down to 2 chain ring offerings and 3 cassette offerings for 12 speeds drive trains -- I can't wait.

Arne Meier
Arne Meier

If I were Shimano CEO, I would ask my enggineers for two more grey color shades for this group set! ;)

Theo Marcoux
Theo Marcoux

Well, no new bike this year. I'd rather wait for this.

Cyclocross Magazine
Cyclocross Magazine

Bil Thorne, yup! As we say in the article, if you can get the Ultegra rings - only the complete cranksets have been available so far. Not 100% sure if they'll fit flush with the 105 spider, since Ultegra/DA spider not exactly the same and Ultegra plastic caps don't fit flush with DA.

Bil Thorne
Bil Thorne

With the same BCD as ultegra, shouldn't those 11s rings work? Colors might not match, but it should fit

craigmacintyre
craigmacintyre

And the used market will now be FLOODED with 10 speed stuff... especially wheels.  Even the "new" market is going to see a clearance of the 10 speed gear.  Good news for those of us that don't need to be cutting edge (for the record, my TT bike is 6800 but everything else, nope)
