Raleigh Revamps Carbon RXC Disc and RXC Pro Disc Frames, Adds Thru Axles for 2015

Pin It

Raleigh launched the RXC carbon cyclocross frameset and bikes three years ago, with the Raleigh-Clement team racing the frame in cantilever and disc brake configurations to countless victories on two continents. After revamping its aluminum RX cyclocross bikes (including the Editors’ Choice Award-winning 2014 RX 2.0 cyclocross bike), the cyclocross-crazy company has followed up with similar changes to the carbon models.

Raleigh's new 2015 RXC Disc and RXC Pro Disc carbon cyclocross  frames get thru axles, lower bottom brackets and 11-speeds. © Cyclocross Magazine

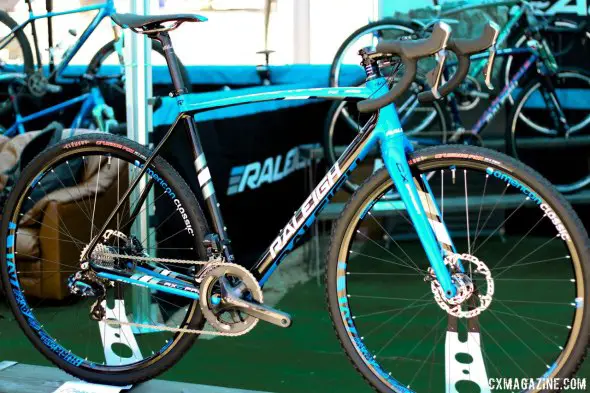

Raleigh’s new 2015 RXC Pro Disc carbon cyclocross bike adds 11-speeds, Shimano hydraulic brakes and thru axle front and rear. © Cyclocross Magazine

For 2015, the RXC Pro Disc and RXC Pro get lower, dropping from its near top-of-the-class bottom bracket drop of just 5.5cm to a middle-of-the-road 6.5cm (in a 56cm). This change should appease many cyclocross racers with a lower center of gravity and lower saddle to hop back on to, but should also make the RXC models more attractive to the gravel grinder and dirt road crowd (who probably don’t have to worry about pedal clearance on sharp, slippery off-camber corners). Bottom bracket height was our one complaint after test riding the previous RXC generations, and we’re excited to fully test the new model.

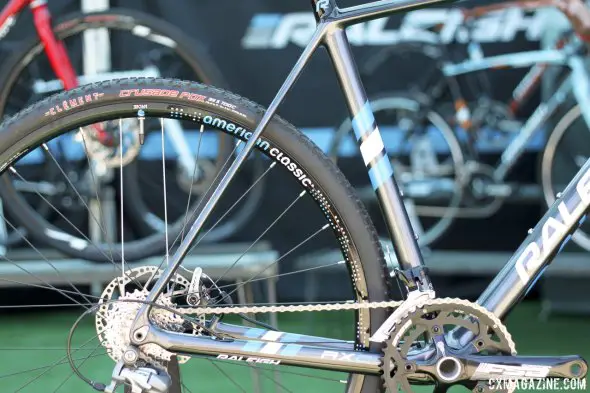

Raleigh's new 2015 carbon RXC frames feature thinner seatstays, rear thru axle and more bottom bracket drop. © Cyclocross Magazine

Raleigh’s new 2015 carbon RXC frames feature thinner seatstays, rear thru axle and more bottom bracket drop. © Cyclocross Magazine

Raleigh didn’t stop there with the frame updates. The seatstays, which were already quite thin for rear wheel vertical compliance, now are even thinner to smooth out the rough spots in your ride (or life). The move seems consistent with the trend of bike companies looking for more compliance (through seatposts or seat masts as seen in the Trek Boone, or rear wheel travel on the Calfee Manta) for rough road and mixed terrain rides.

Worried about that rear wheel getting squirrely on you with the thinner seatstays? Raleigh helps keep that rear wheel aligned with a new 142mm thru axle for the rear wheel. Yes, rear wheel changes may get a bit slower, and your 135mm disc wheels will need to be adapted (if possible) to fit the new 2015 RXC frames.

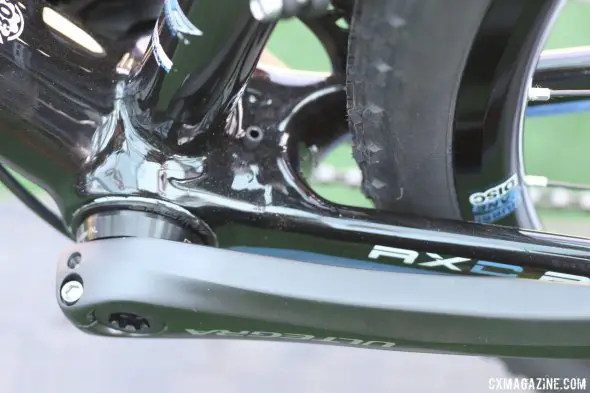

As further proof Raleigh has been listening to our feedback, the mud-catching chainstay bridge on the carbon frame is gone, and there’s more clearance at the front of the rear tire. There’s still a small flat shelf behind the bottom bracket, but overall it looks like mudders will be happy with the changes.

Raleigh's new 2015 RXC Disc and RXC Pro Disc cyclocross bikes loose the mud-catching bridge seen on previous models. © Cyclocross Magazine

Raleigh’s new 2015 RXC Disc and RXC Pro Disc cyclocross bikes loose the mud-catching bridge seen on previous models. © Cyclocross Magazine

Up front, the Raleigh RXC Disc and RXC Pro Disc naturally pair the rear thru axle with a new thru axle front fork exclusive to Raleigh. The fork replaces the ENVE model on the RXC Pro Disc from 2014, but now the RXC Pro Disc and RXC Disc feature the same full carbon fork.

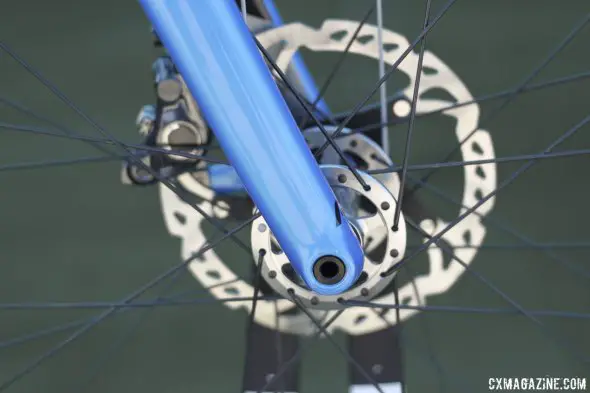

Raleigh's new 2015 RXC Disc and RXC Pro Disc cyclocross bikes prioritize stiffness over quick wheel changes. © Cyclocross Magazine

Raleigh’s new 2015 RXC Disc and RXC Pro Disc cyclocross bikes prioritize stiffness over quick wheel changes. © Cyclocross Magazine

The flagship RXC Pro Disc, as raced by the Raleigh-Clement team (in modified form), returns with American Classic Hurricane wheels and Di2, but Ultegra 10-speed 6670 Di2 and TRP Brakes are traded in favor for Shimano’s R785 integrated Di2 hydraulic 11-speed STI levers and R785 hydraulic disc brake levers. We expect the R785 calipers to be swapped to the newer RS785 calipers as a running change when the R785 calipers supply runs out.

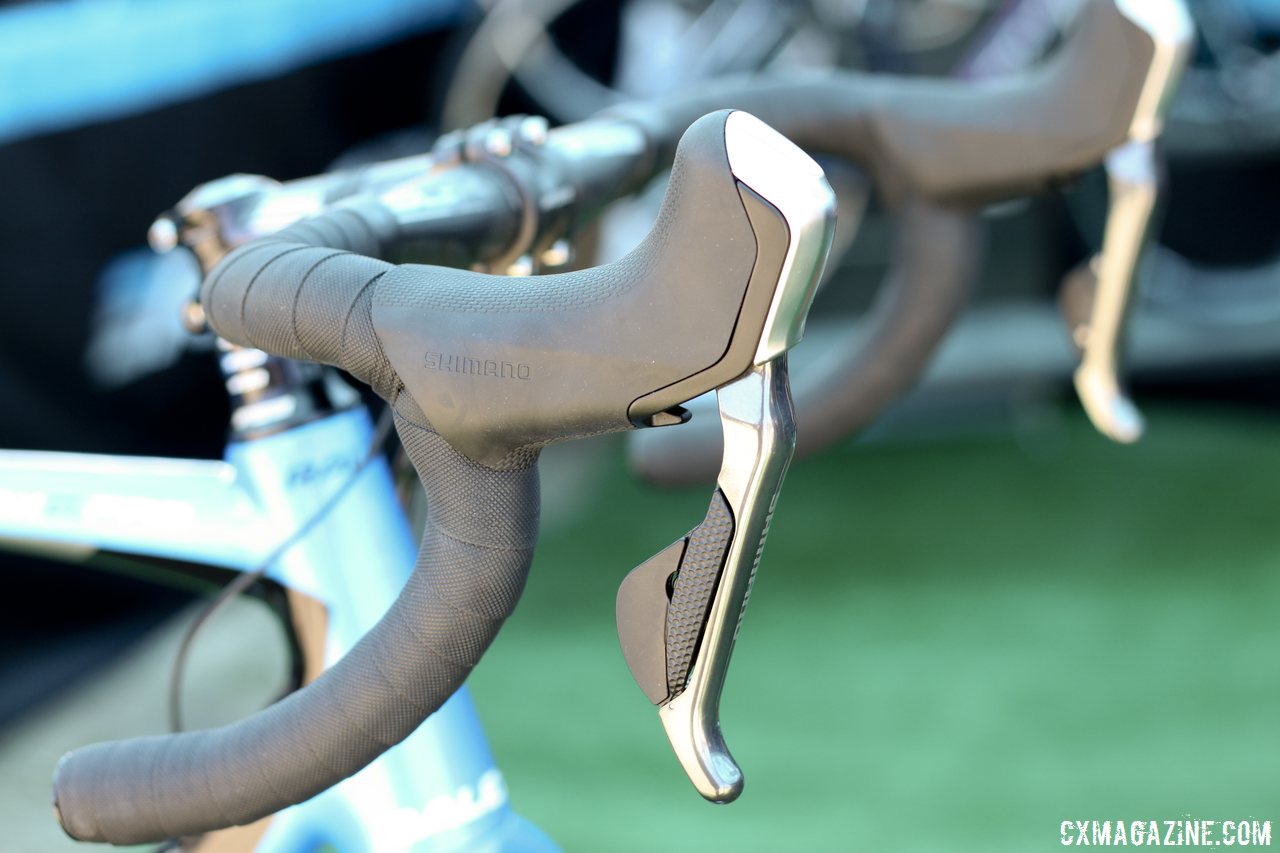

Raleigh's 2015 RXC Pro Disc features the latest from Shimano with hydraulic and electronic controls. © Cyclocross Magazine

Raleigh’s 2015 RXC Pro Disc features the latest from Shimano with hydraulic and electronic controls. © Cyclocross Magazine

The more affordable RXC Disc retains Shimano 105 componentry, but should get another cog in-form of the just-released Shimano 105 5800 component group. It features the exact same frame and fork of the RXC Pro Disc, making it a great candidate for the upgrade-later, budget-conscious crowd.

Prices? Raleigh’s Brian Fornes expects them to be nearly the same as the 2014 models, but didn’t have final pricing yet as the bikes just arrived.

More info: www.raleighusa.com






Cyclocross Magazine, Issue 22, Print and digital subscriptionsHave you subscribed yet? You're missing out if not. Get all-original content and your cyclocross fix throughout the year with a subscription and Issue 23 back copy, with features on Lars van der Haar, Jonathan Page, Elle Anderson and more!
Tagged as: , , , , , ,
13 comments
Cyclocross Magazine
Cyclocross Magazine

Jon Suzuki, in time they will. Companies can even use 29er wheels. There's already 10 bike companies with at least front thru axle cx bikes.

Jon Suzuki
Jon Suzuki

Better have your own neutral support, 'cause they ain't gonna have any thru-axle wheels!

Cyclo Cuts
Cyclo Cuts

That light blue it represented yeti back in the day.....But i remember(maybe iam wrong) there was a Raleigh Tomac signature with black main tubes and light blue joints....i will look in the web...

Doug Vail
Doug Vail

Love the through axles. But cx disc brakes aren't where they need to be yet

Cyclo Cuts
Cyclo Cuts

Why this bike brough John Tomac to my mind?

Warren Cox
Warren Cox

Probably Ultegra seeing the rest of groupo seems to be. Discs, thru axles, at last....

Joseph Allan
Joseph Allan

What are those shifters, I've seen them before but don't know exactly what they are ?

Nation Harris
Nation Harris

If I ever get money for a cross bike (which with a daughter on the way looks like I'll have my 8 speed Marin for a few more years) it'd be one of those.. Or a crockett

Cat6Racer
Cat6Racer

Warren, can I ask why "at last"?  I don't really get why we NEED thru axles in cross.
